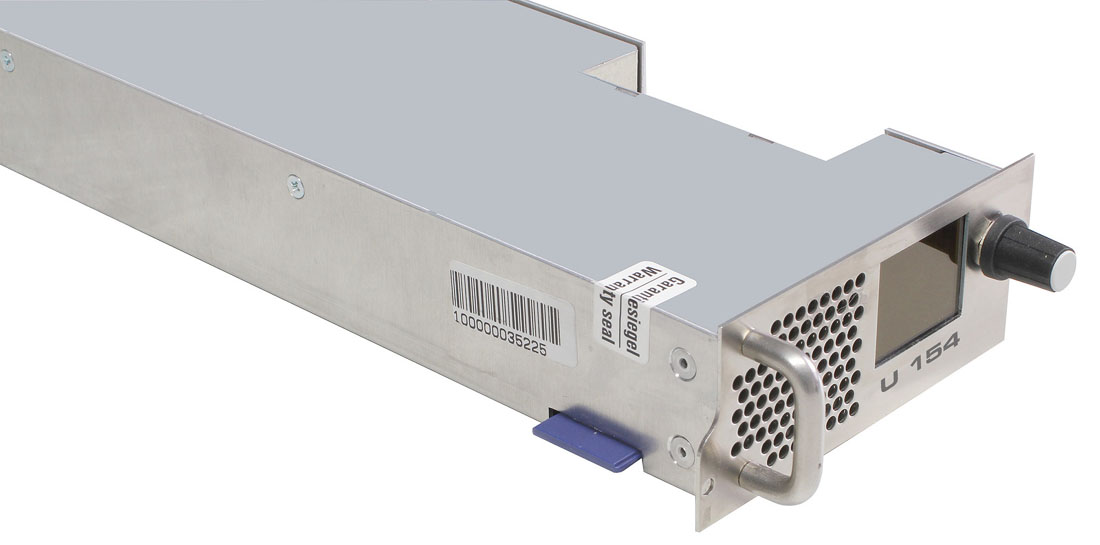

Signal converter IP to QAM
Signal converter IP to QAM - Image 2

Signal converter IP to QAM

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard QAM channels

U 154

Specification

Module type

IP in QAM converter
Order number

00380154

EAN-Code

4026187611071

No longer available

Product Details
  • plug-in module for U 100 base unit
  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard QAM channels
  • QAM channels programmes are led through as four adjacent channels
  • outstanding signal parameters by Direct Digital technology
  • NIT and LCN processing integrated
  • optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
  • user friendly configuration via web browser
  • monitored fan

Product is combinable with

Channel selective pluggable output filter

U-KF 111-174 MHz
for U 1xx signal converters

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

Channel selective pluggable output channel filter

U-KF 47-68 MHz
for U 1xx signal converters

Channel selective pluggable output filter

U-KF 174-398 MHz
for U 1xx signal converters

Management controller

U 100-C
for U 1xx devices

Channel selective pluggable output filter

U-KF 398-860 MHz
for U 1xx signal converters

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262
