Signal converter IP to DVB-C2
Signal converter IP to DVB-C2 - Image 2
Signal converter IP to DVB-C2 - Image 3
Signal converter IP to DVB-C2 - Image 4

Signal converter IP to DVB-C2

up to 24 IP multicast groups of a Gigabit Ethernet MPEG TS into 2 DVB-C2 systems

U 160

Specification

Module type

IP in DVB-C2 converter
Order number

00380160

EAN-Code

4026187161088

On request
Product Details

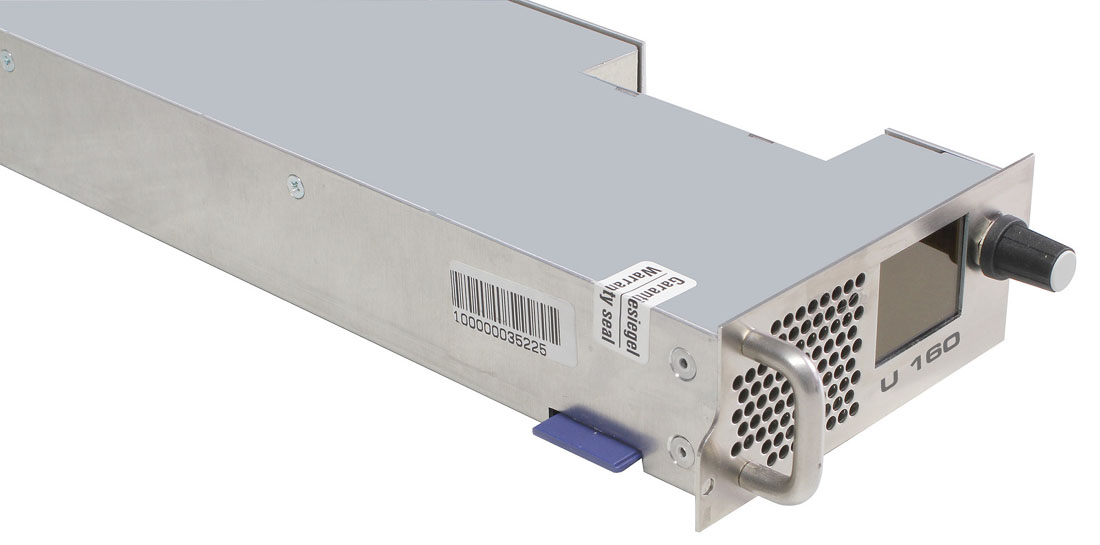

  • plug-in module for U 100 base unit

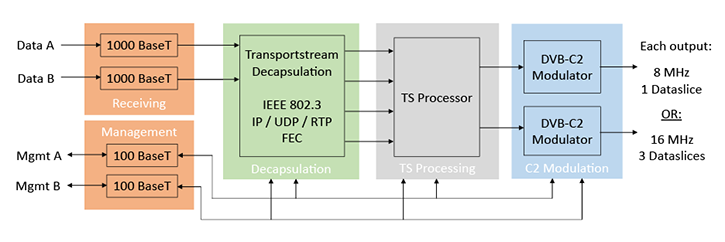

  • for processing of up to 24 IP multicast groups of a Gigabit Ethernet MPEG TS into 2 DVB-C2 systems
  • multiple transportstream
  • multiplexing of data slices
  • FEC: LDPC and BCH
  • OFDM modulation
  • 2 x 8 MHz / 1 data slice or 2 x 16 MHz / 3 data slices
  • RTP, IGMPv3
  • broadband notch placing

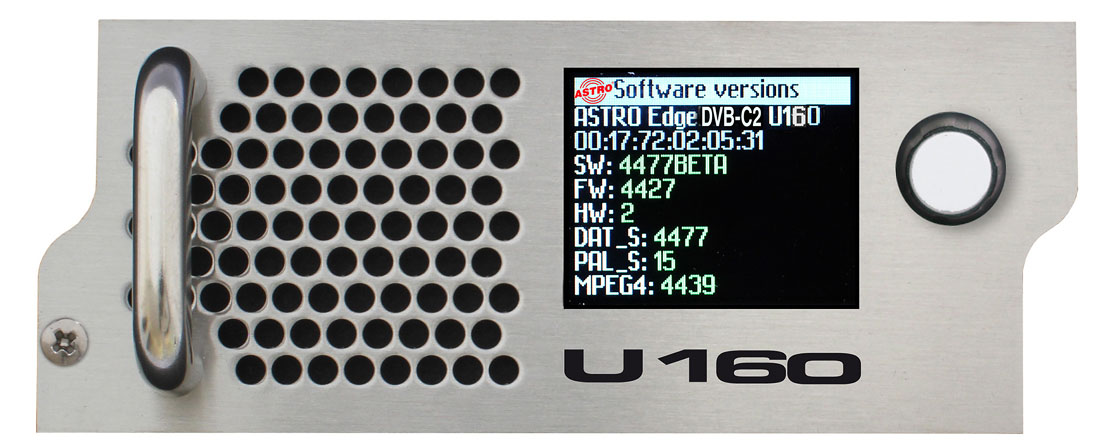

  • user friendly configuration via web browser
  • monitored fan
  • IP/DVB-C2 signal converter, 2 x IP-Multicast to 2 x DVB-C2 systems,
Download Details

Product is combinable with

Management controller

U 100-C
for U 1xx devices

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262
