DVB-C, DVB-T or DVB-T2 to IP streamer
DVB-C, DVB-T or DVB-T2 to IP streamer - Image 2
DVB-C, DVB-T or DVB-T2 to IP streamer - Image 3
DVB-C, DVB-T or DVB-T2 to IP streamer - Image 4

DVB-C, DVB-T or DVB-T2 to IP streamer

4 DVB-CT2 signals into IP

U 164

Specification

Module type

DVB-C/-T/-T2 in IP streamer
Order number

00380164

EAN-Code

4026187170769

No longer available

Product Details
  • plug-in module for U 100 base unit

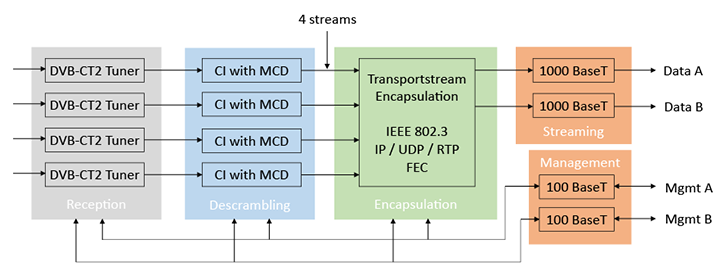

  • one physical signal input jack for processing of 4 DVB-CT2 signals into IP multicast groups; 8 MPTS, 504 SPTS (SPTS license afforded)
  • up to 12 streams per rack unit
  • 4 cascadable CI-Slots with multichannel decryption
  • DiSEqC support
  • monitored fan
Download Details

Product is combinable with

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262

Management controller

U 100-C
for U 1xx devices

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series
