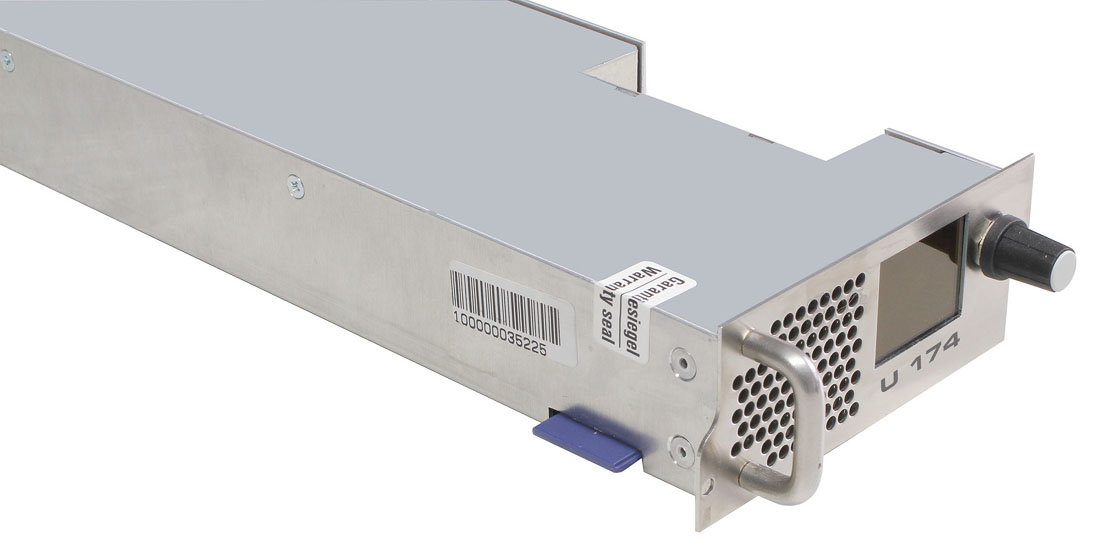

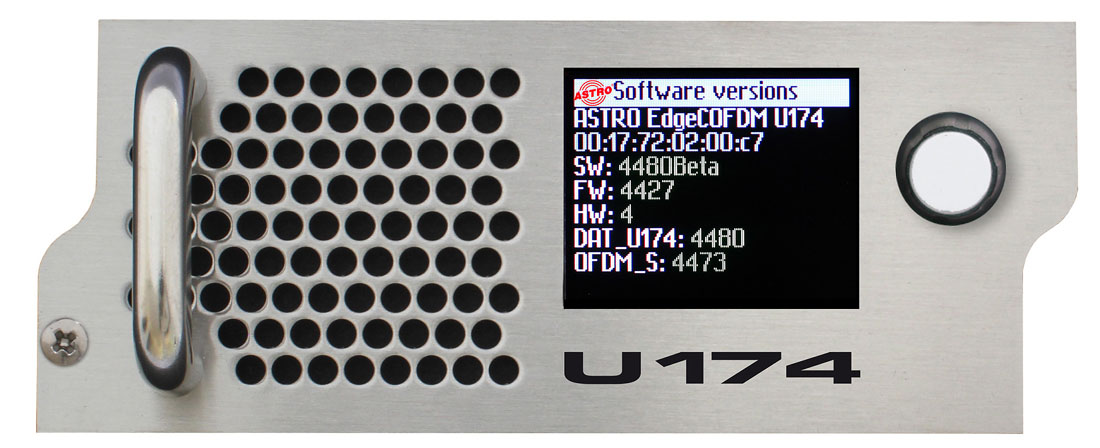

Signal converter IP to COFDM
Signal converter IP to COFDM - Image 2
Signal converter IP to COFDM - Image 3
Signal converter IP to COFDM - Image 4

Signal converter IP to COFDM

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS into 4 standard COFDM channels

U 174

Specification

Module type

IP in COFDM converter
Order number

00380174

EAN-Code

4026187611026

On request
Product Details
  • plug-in module for U 100 base unit
  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS into 4 standard COFDM channels
  • COFDM channels are led through as two adjacent channels
  • outstanding signal parameters by Direct Digital technology (MER: ≥ 43 dB; shoulder attenuation: ≥ 56 dB)
  • RTP, FEC, IGMPv3
  • optionally available output channel filters (U-KF) allow for maintaining the high signal quality even after combining
  • user friendly configuration via web browser
  • monitored fan
