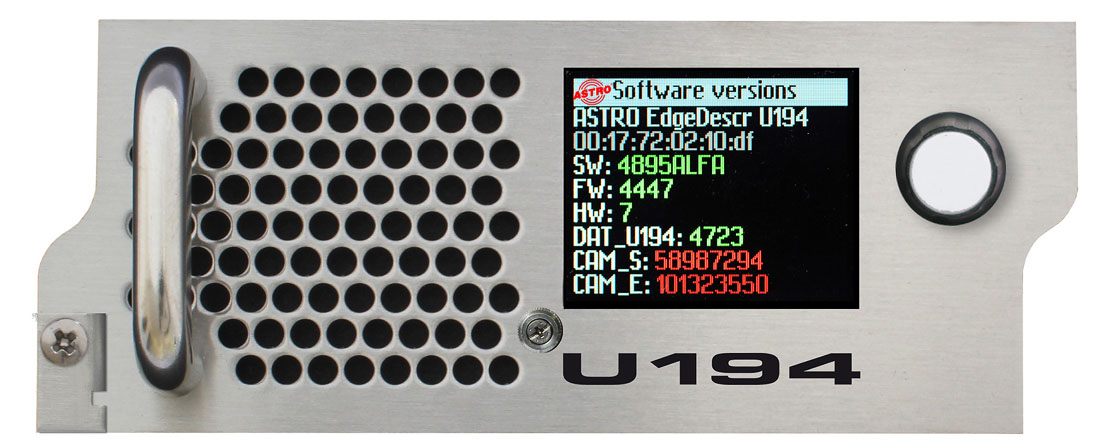

Descrambler IP to IP

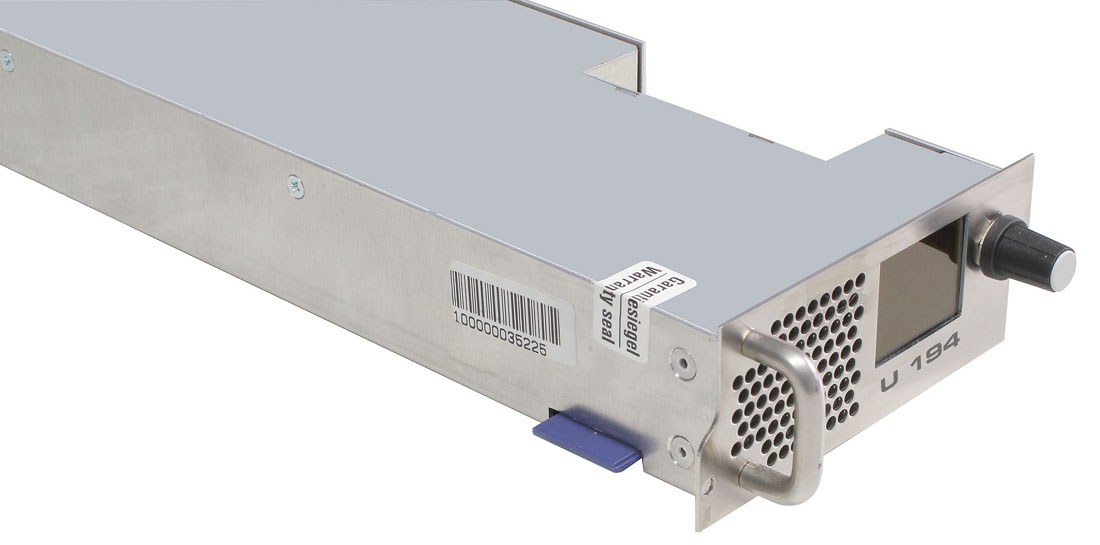

Descrambler IP to IP - Image 2
Descrambler IP to IP - Image 3
Descrambler IP to IP - Image 4

Descrambler IP to IP

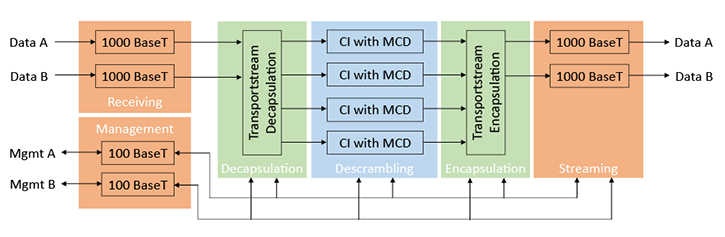

4 CI-slots; independent / cascadable with multi channel decoding

U 194

Specification

Module type

IP in IP descrambler
Order number

00380161

EAN-Code

4026187161095

On request
Product Details
  • plug-in module for U 100 base unit
  • 4 CI-slots; independent / cascadable with multi channel decoding
  • 4 transport streams
  • Multi-Service-Descrambling
  • decryption level: service based, PID based
  • RTP, FEC, IGMPv3
  • user friendly configuration via web browser
  • monitored fan
Download Details

Product is combinable with

Management controller

U 100-C
for U 1xx devices

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series
