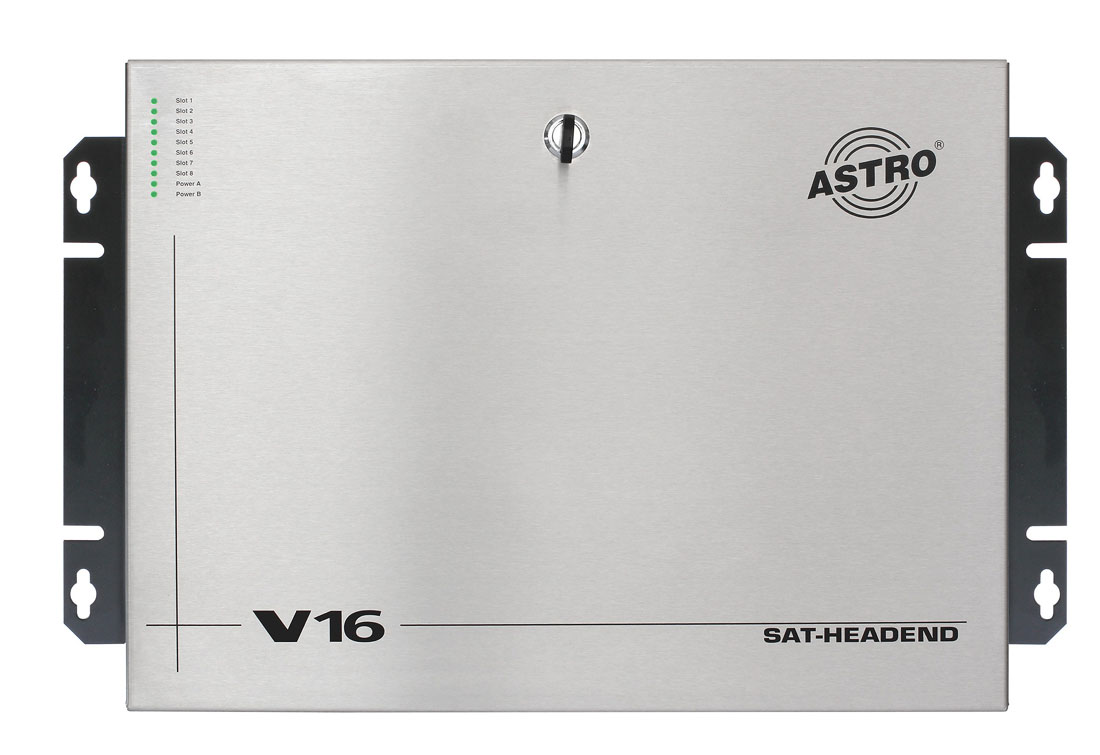

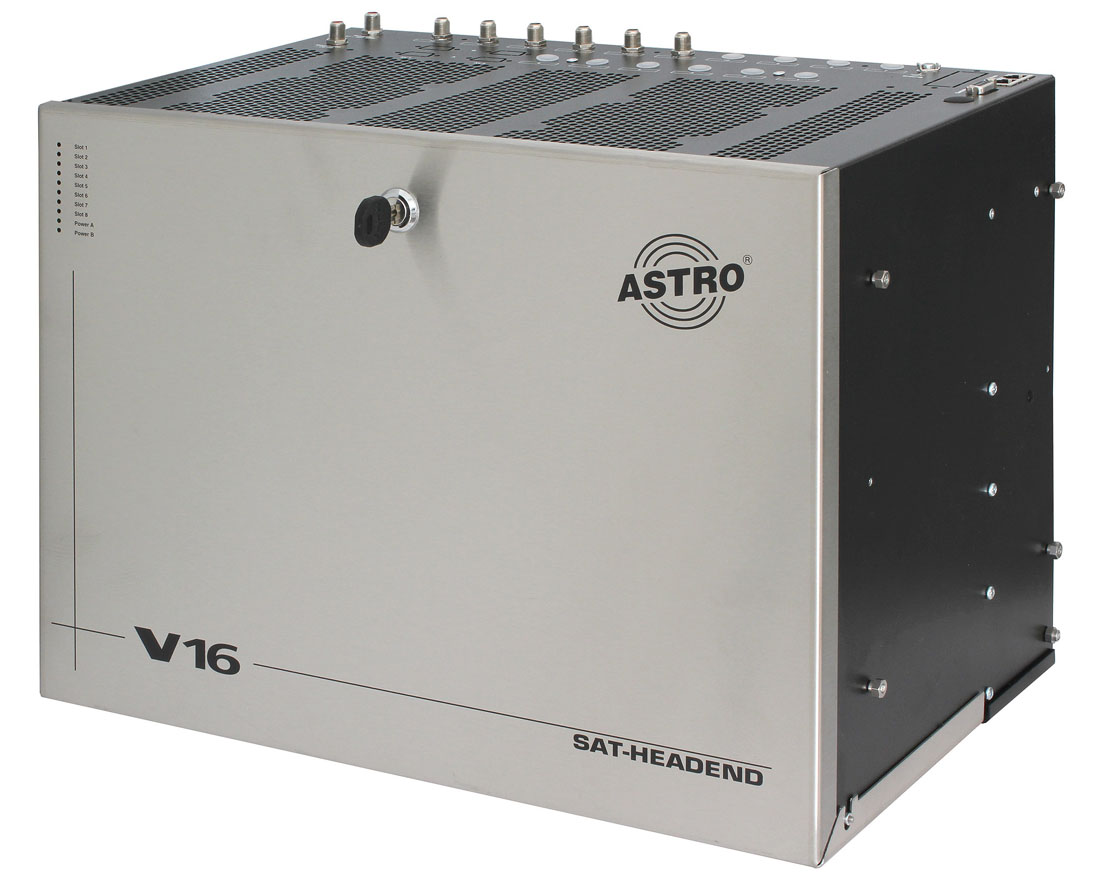

Modular head-end base unit
base unit for mounting up to 8 plugin cards of the X and V series
V 16.25
Specification
| Module type | Base unit |
|---|
| Order number | 00380078 |
|---|---|
| EAN-Code | 4026187111076 |
No longer available
Product Details
- base unit for mounting up to 8 plugin cards of the X and V series
- including power supply unit and mainboard
- individual plugging and configuration
- configuration via HE programming software or via programming unit KC 3
- 2 temperature controlled fans
- status LED at the front panel
- lockable stainless steel front cover
- integrated 230 V twin power supply
- bus adapter
- serial port, USB port
- 20 dB testpoint
- prepared for 16 A/V, 32 Sub-D and BNC-jacks for ASI signal converters
- separate outputs
- wall mounting or 19" rack mounting
Download Details
-
Anleitung V 16 pdf ยท 2mb
-
Datenblatt V 16 pdf ยท 2mb
-
Datenblatt V 16 [en] pdf ยท 2mb
