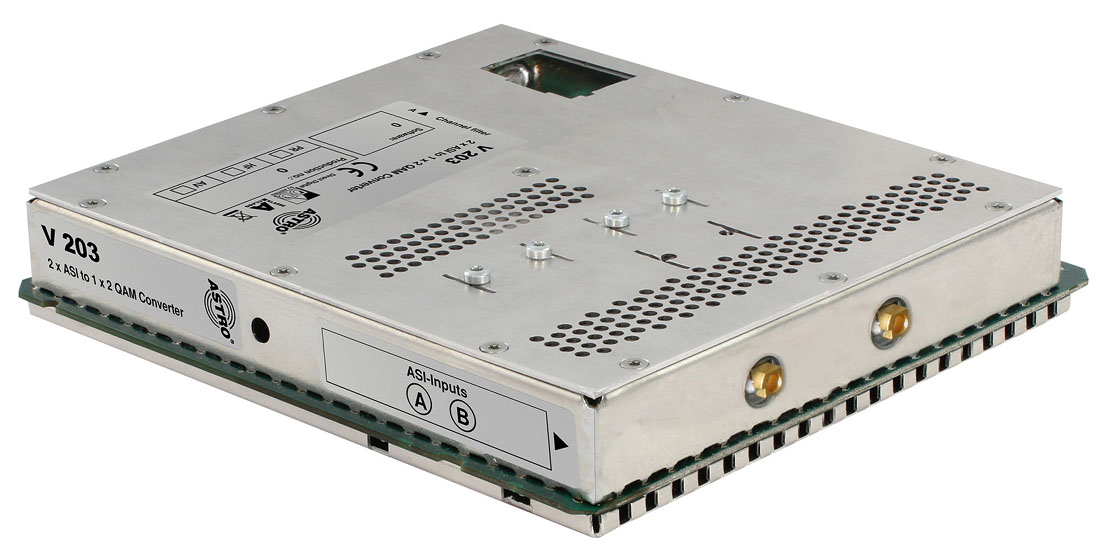

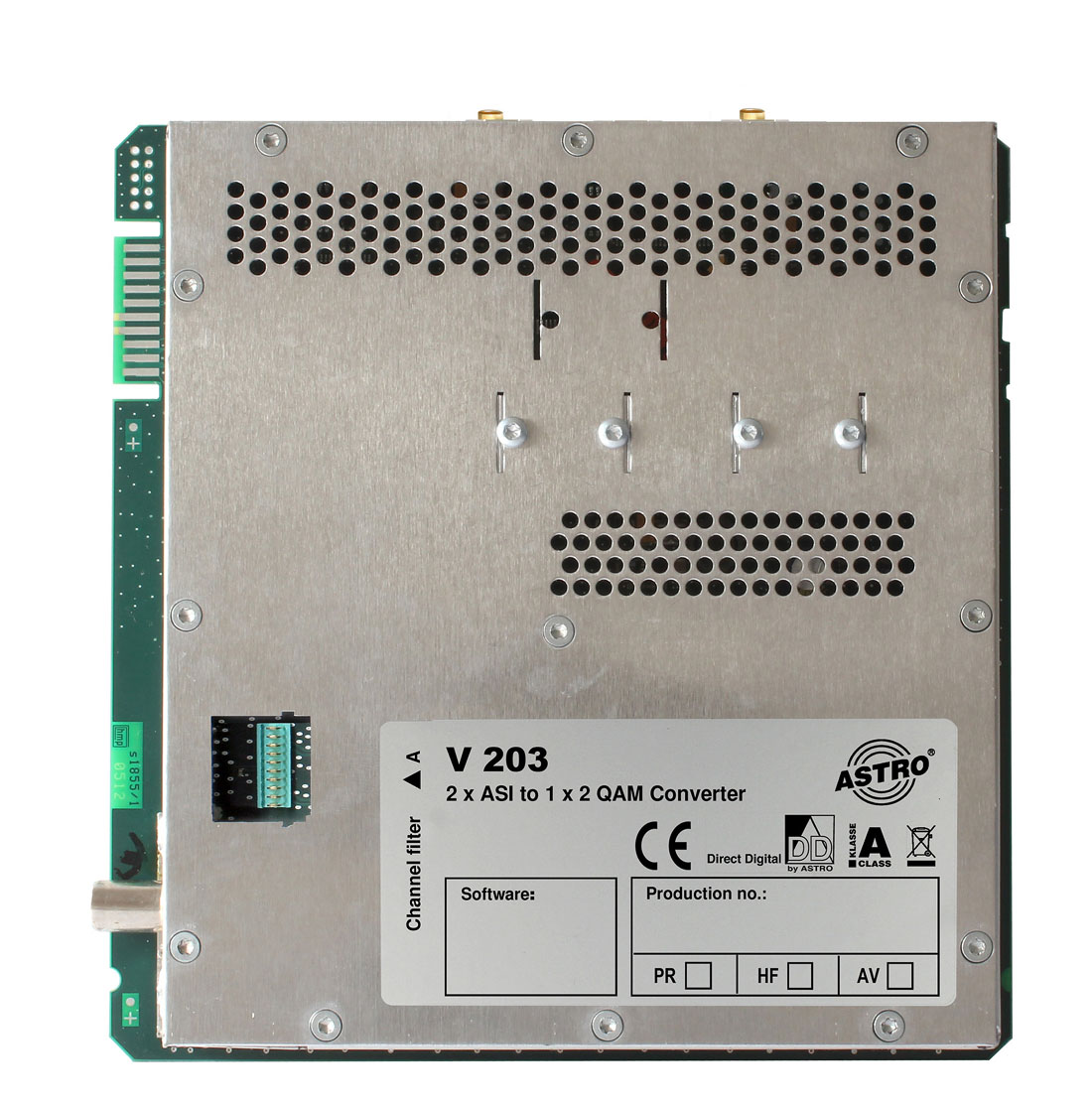

Signal converter 2 x DVB-S2 into 1 x 2 QAM
Signal converter 2 x DVB-S2 into 1 x 2 QAM - Image 2
Signal converter 2 x DVB-S2 into 1 x 2 QAM - Image 3

Signal converter 2 x DVB-S2 into 1 x 2 QAM

plugin card for modular base unit V 16

V 203

Specification

Module type

Plug-in card
Input signal

ASI
Output signal

DVB-C
Order number

00380219

EAN-Code

4026187191160

No longer available

Product Details
  • plugin card for modular base unit V 16

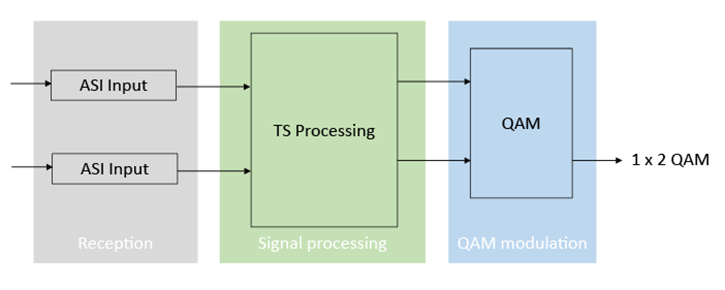

  • for processing of 2 ASI input signals into 2 QAM adjacent channels
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • 8 manal PID filters
  • one slot for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit

V 16.25
base unit for mounting up to 8 plugin cards of the X and V series

Output channel filter

VKF 111-174 MHz
111-174 MHz

Output channel filters

V-KF…
for plugin cards of the V series
