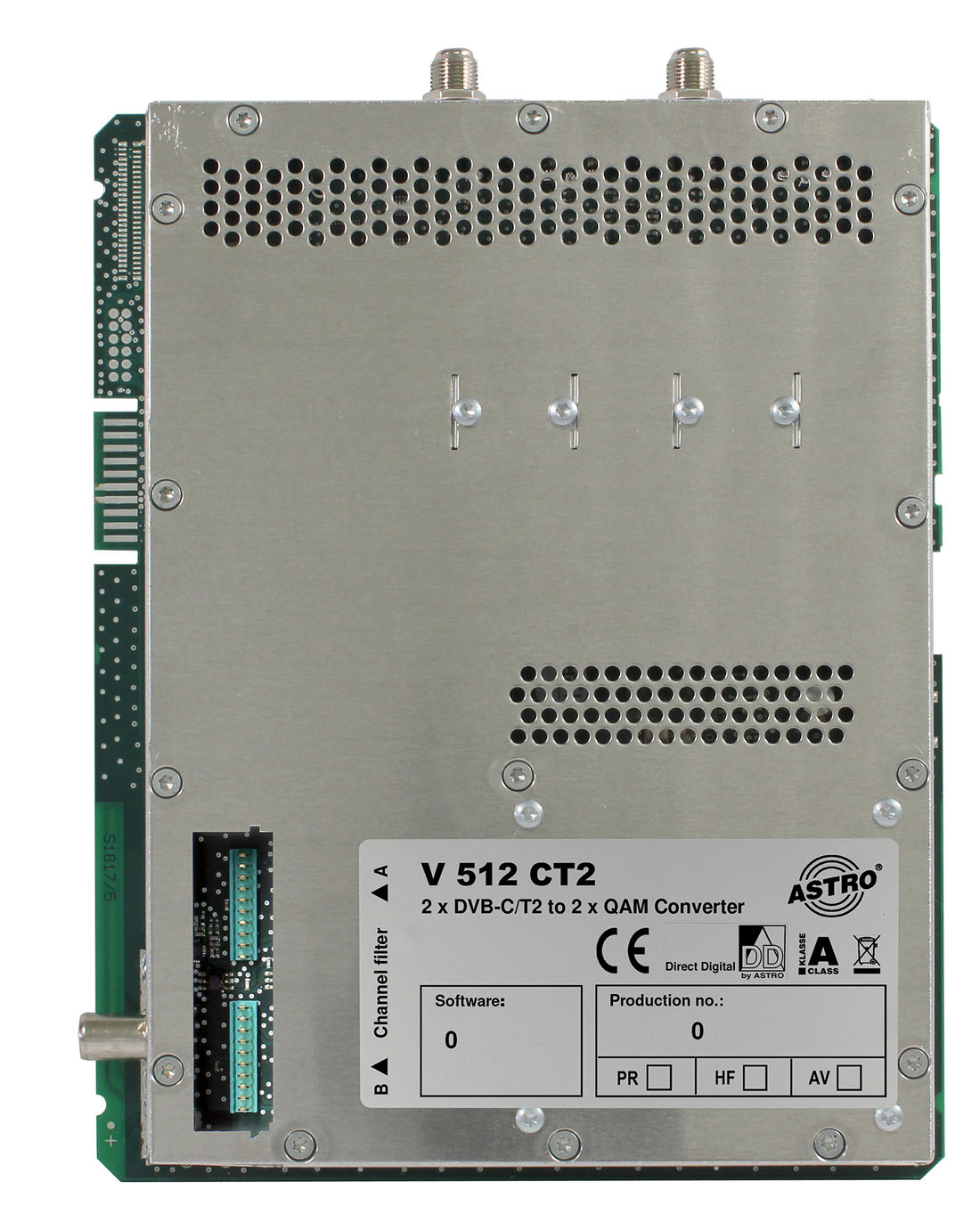

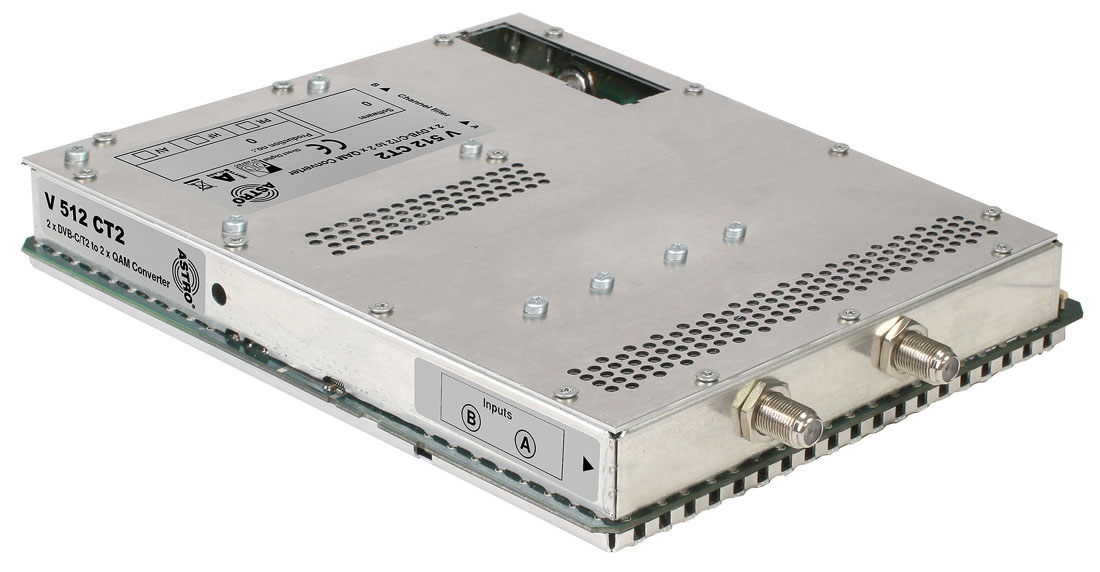

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM
Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM - Image 2
Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM - Image 3

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM

plugin card for modular base unit V 16

V 512 CT2

Specification

Module type

Plug-in card
Input signal

DVB T2, DVB-C, DVB-T
Output signal

DVB-C
Order number

00380513

EAN-Code

4026187171346

No longer available

Product Details
  • plugin card for modular base unit V 16

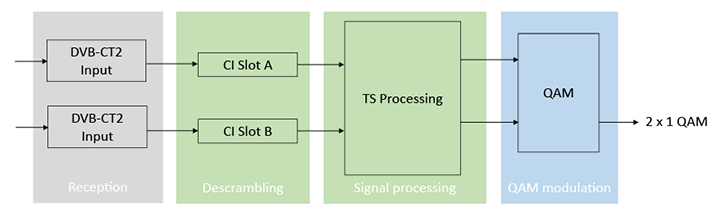

  • for processing of 2 DVB-C, DVB-T or DVB-T2 signals into 2 independent QAM output channels
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • PID filter
  • 2 slots for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details
