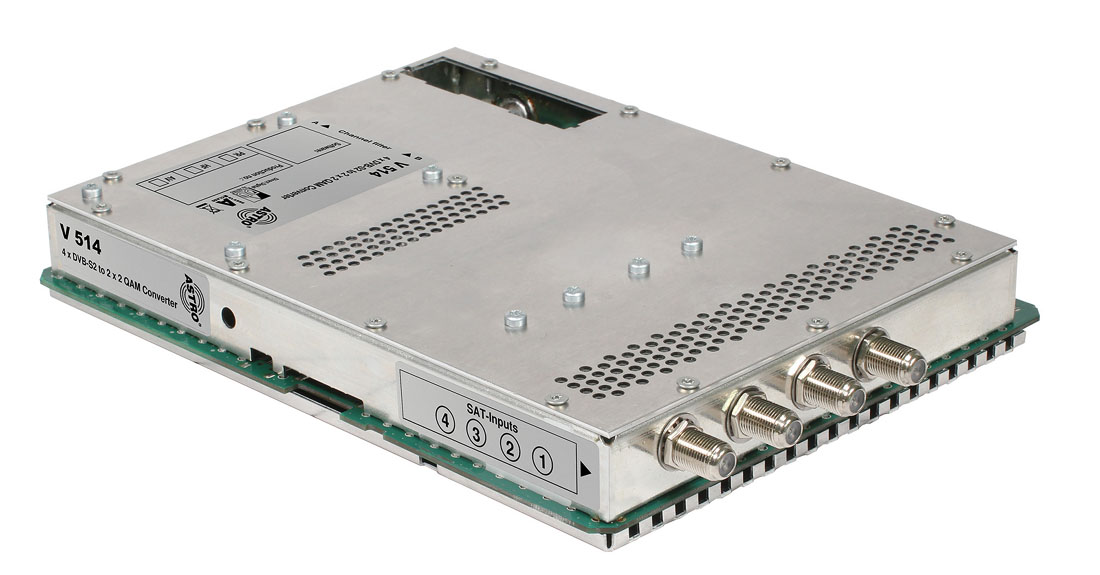

Signal converter 4 x DVB-S2 into 2 x 2 QAM
Signal converter 4 x DVB-S2 into 2 x 2 QAM - Image 2

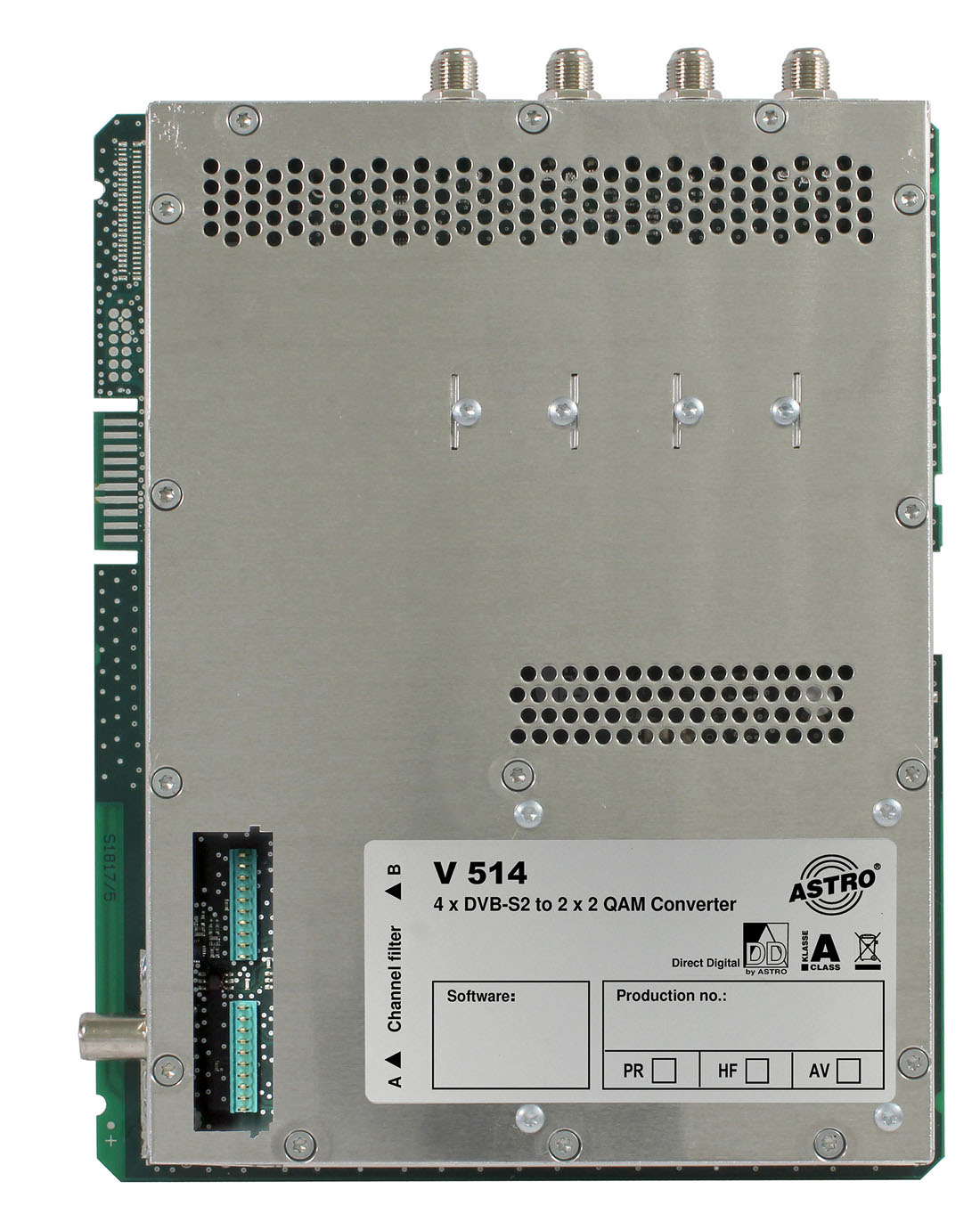

Signal converter 4 x DVB-S2 into 2 x 2 QAM - Image 3

Signal converter 4 x DVB-S2 into 2 x 2 QAM

plugin card for modular base unit V 16

V 514

Specification

Module type

Plug-in card
Input signal

DVB-S2
Output signal

DVB-C
Order number

00380514

EAN-Code

4026187611132

No longer available

Product Details
  • plugin card for modular base unit V 16

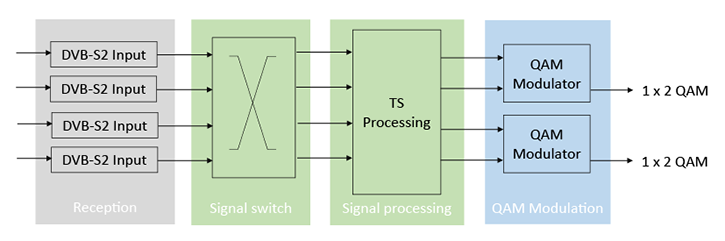

  • 4 independent input signals are processed into 2 adjacent QAM channel pairs
  • MER typ. 45 dB
  • shoulder attenuation typ. 58 dB
  • comfortable PID filtering (Online Drop- or Pass-PID)
  • Data rate adjustment
  • PCR correction and NIT generation
  • input channel switch for multiple use of one SAT polarization to reduce cabling effort
  • 2 slots for channel selective output filters
