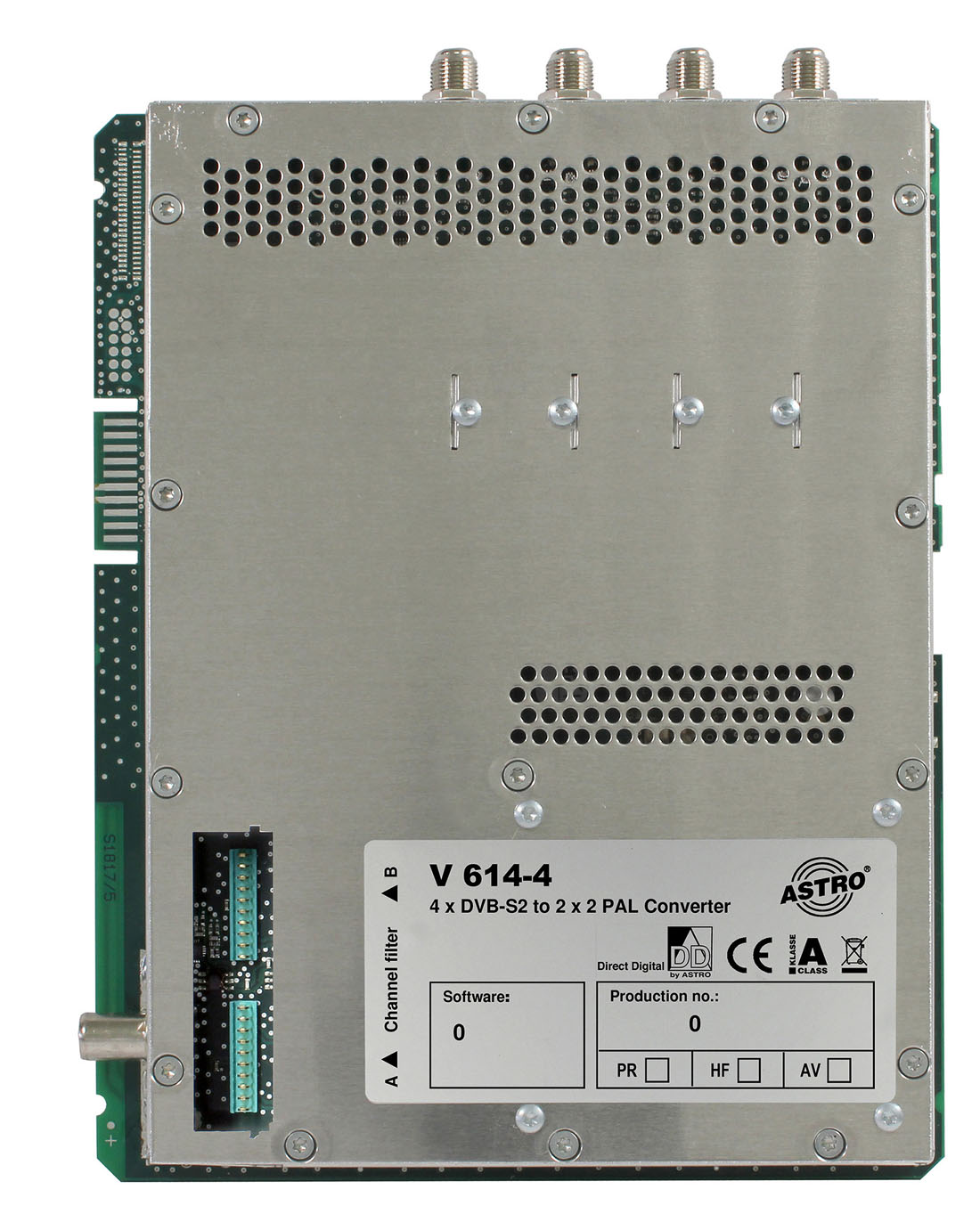

Signal converter 4 x DVB-S to 2 x 2 PAL

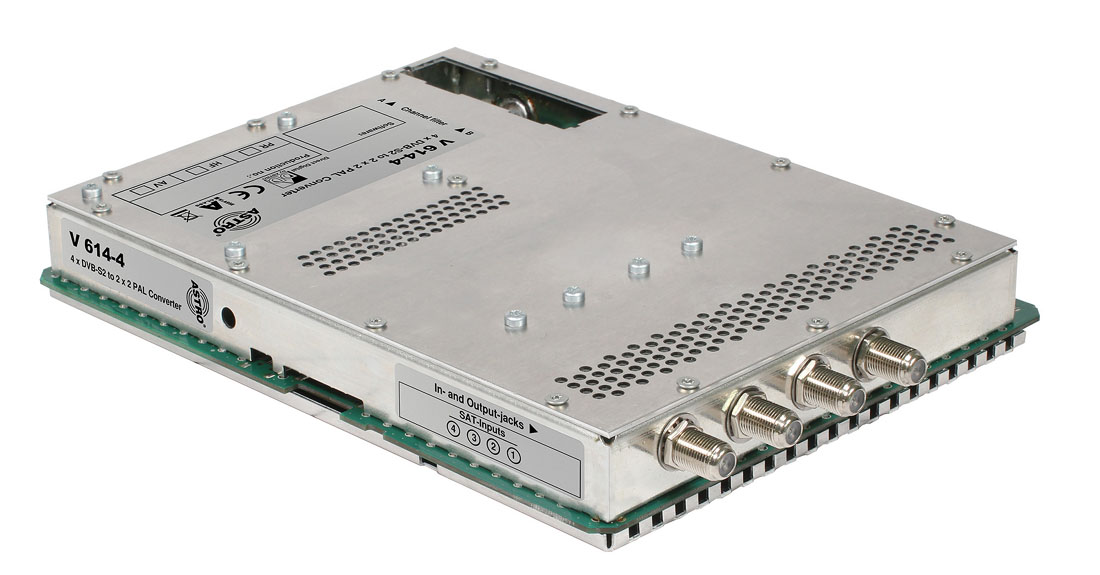

Signal converter 4 x DVB-S to 2 x 2 PAL - Image 2
Signal converter 4 x DVB-S to 2 x 2 PAL - Image 3

Signal converter 4 x DVB-S to 2 x 2 PAL

plugin card for modular base unit V 16

V 614-4

Specification

Module type

Plug-in card
Input signal

DVB-S
Output signal

PAL
Order number

00380332

EAN-Code

4026187131906

No longer available

Product Details
  • plugin card for modular base unit V 16

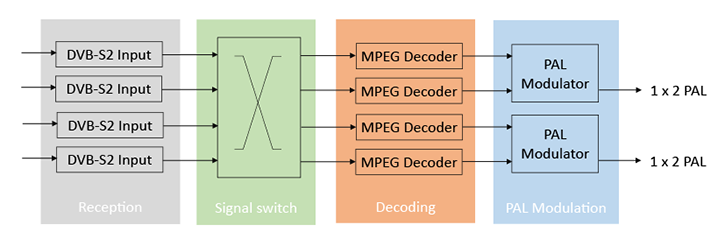

  • processing of  4 independent  DVB-S input signals into 2 PAL adjacent channel pairs in the frequenzy range 47 to 862 MHz
  • Beyond standard features like VPS, teletext and WSS this transcoder offers free programmable tickertext, which can time controlled or in case of error inform customers.
  •  input signal switch for multiple use of one SAT polarization to reduce cabling effort
  • 2 slots for channel selective output filters
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Output channel filter

VKF 111-174 MHz
111-174 MHz

Output channel filters

V-KF…
for plugin cards of the V series

Modular head-end base unit

V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

Modular head-end base unit

V 16.1
for mounting up to 8 plugin cards of the X and V series
