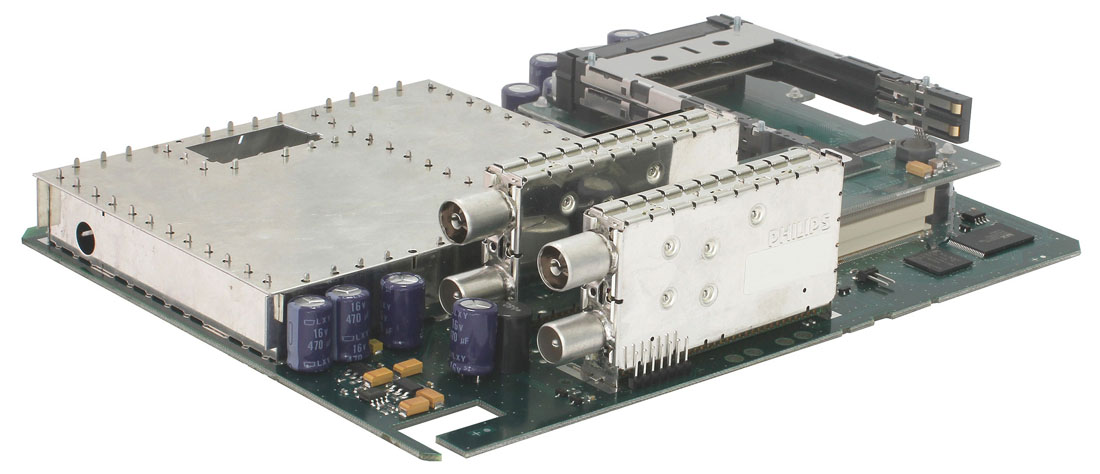

Signal converter 2 x DVB-T into 1 x 2 PAL
Signal converter 2 x DVB-T into 1 x 2 PAL - Image 2

Signal converter 2 x DVB-T into 1 x 2 PAL

plugin card for modular base unit V 16

V 712 CI

Specification

Module type

Plug-in card
Input signal

DVB-T
Output signal

PAL
Order number

00380713

EAN-Code

4026187002657

No longer available

Product Details
  • plugin card for modular base unit V 16

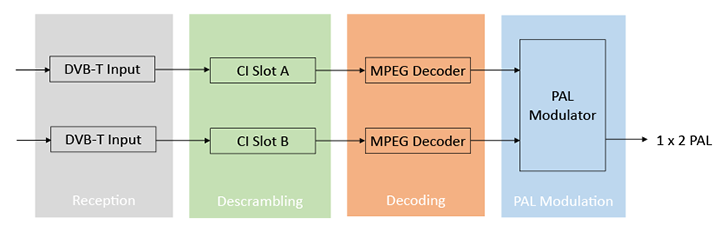

  • processing of 2 digital terrestrial TV programmes in 2 PAL adjacent channels in the frequenzy range 47-862 MHz
  • free configuration via software
  • complient to all common TV norms
  • WSS, teletext, VPS, different analogue TV standards programmable
  • one slot for selective output channel filters
  • 2 CI interfaces
  • outstanding signal parameters by Direct Digital Technology
Download Details

Product is combinable with

Output channel filter

VKF 111-174 MHz
111-174 MHz

Output channel filters

V-KF…
for plugin cards of the V series

Modular head-end base unit

V 16.1
for mounting up to 8 plugin cards of the X and V series
