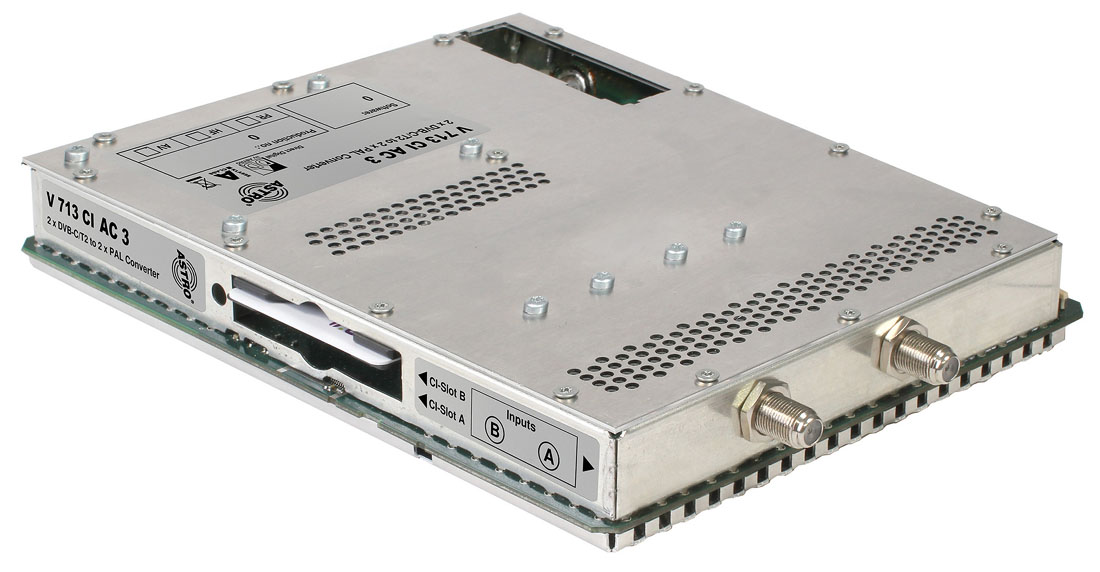

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into PAL
Signal converter 2 x DVB-C, DVB-T or DVB-T2 into PAL - Image 2

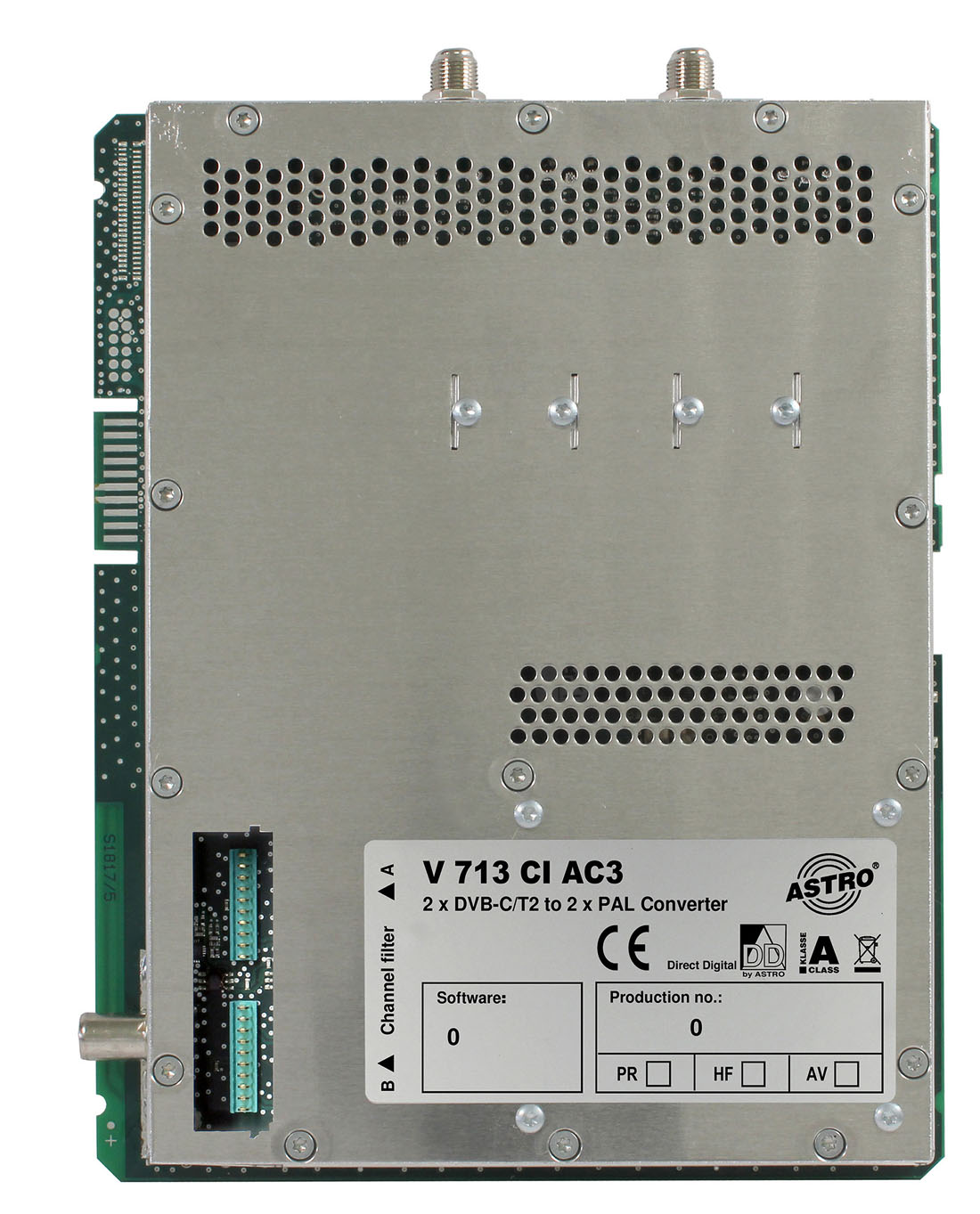

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into PAL - Image 3

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into PAL

plugin card for modular base unit V 16

V 713 CI (AC3)

Specification

Module type

Plug-in card
Input signal

DVB T2, DVB-C, DVB-T
Output signal

PAL
Order number

00380717

EAN-Code

4026187170875

No longer available

Product Details
  • plugin card for modular base unit V 16

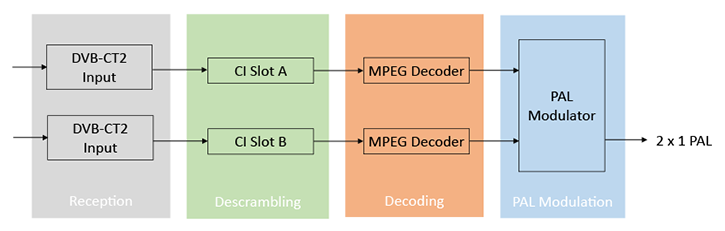

  • for processing of 2 DVB-C, DVB-T or DVB-T2 signals into PAL
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • PID filter
  • HD in SD Downscaling
  • MPEG4, AAC, WSS, teletext, VPS, different analogue TV standards programmable
  • 2 CI interfaces
  • AC-3 decoding
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit

V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

Output channel filters

V-KF…
for plugin cards of the V series

Output channel filter

VKF 111-174 MHz
111-174 MHz
