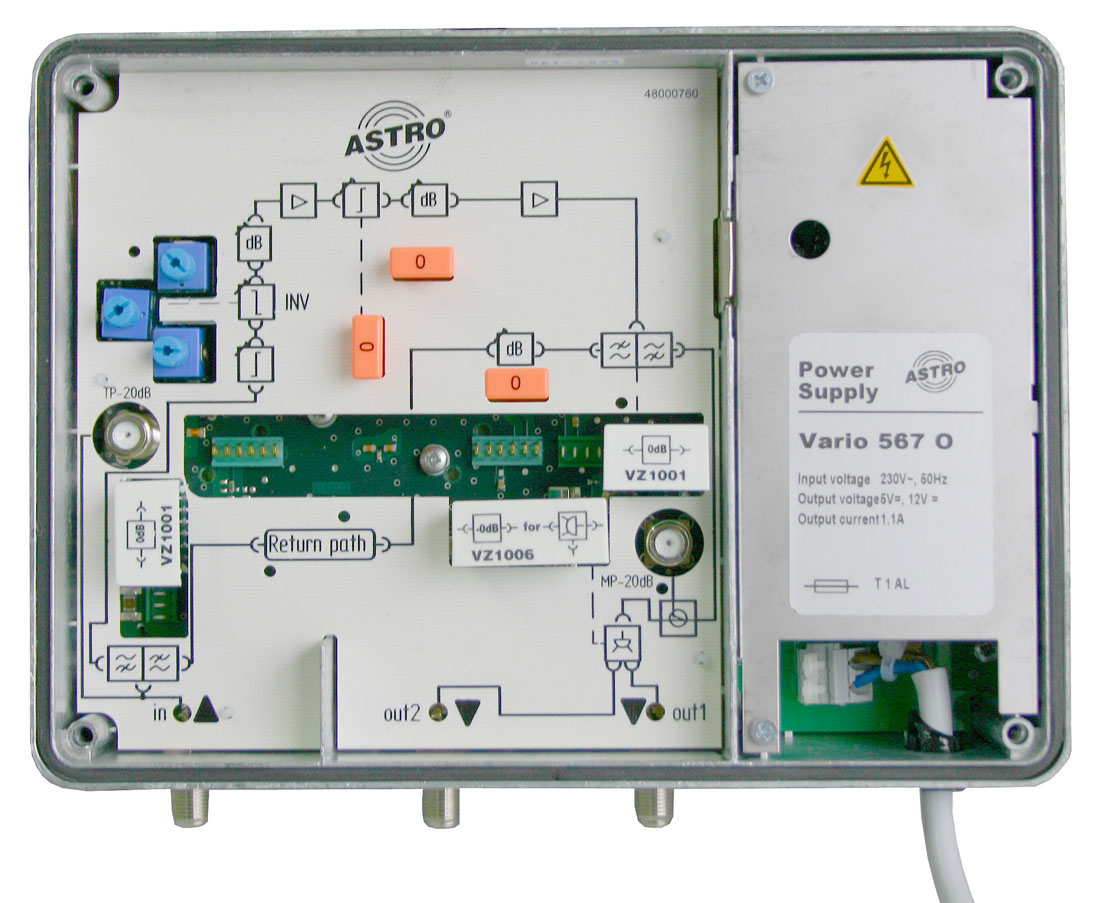

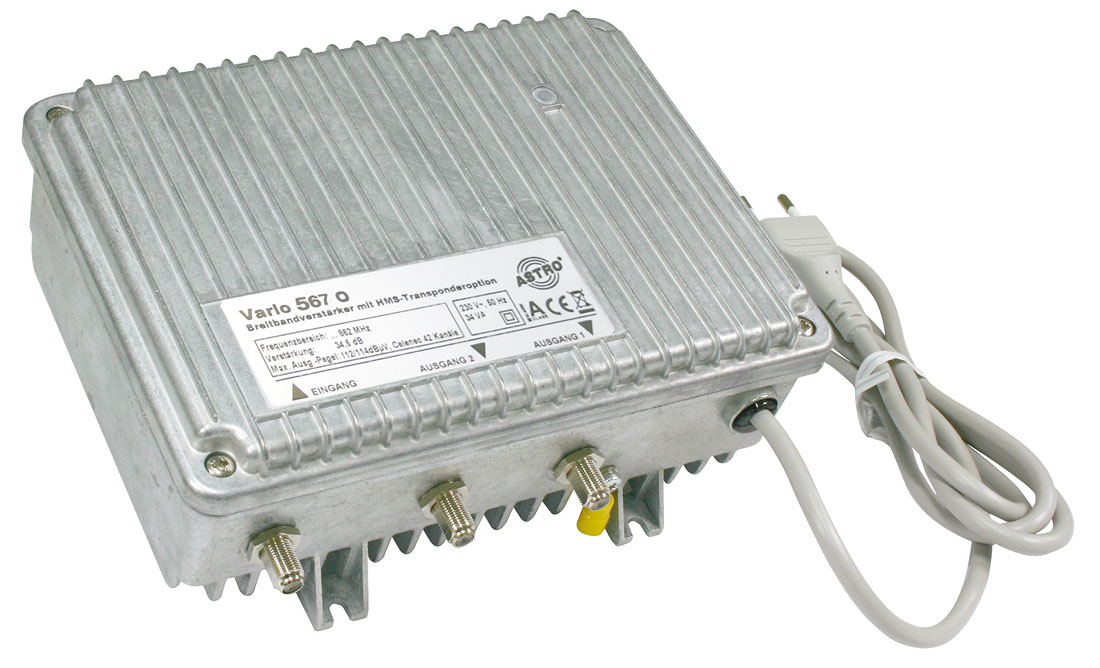

Modular broadband amplifier

Login to see prices

With optional 65 MHz return path

VARIO 567 O

Specification

Device type

Modular
Power supply

Local
Frequency range

up to 1006 MHz
Forward path gain

35-39 dB
Order number

00217567

EAN-Code

4026187130411

Product Details
  • With optional 65 MHz return path
  • Gain forward path 35,5 dB
  • Output level forward path 110 dBµV
  • Gain in the return path depending on the return path module used
  • Attenuator input 0 - 20 dB
  • Equalizer input 0 - 20 dB
  • Inverse equalizer input 0 - 7 dB
  • Interstage attenuation 0 - 7 dB
  • Equalizer Interstage 0 -10 dB
  • 20 dB Measuring points in input and output
  • 2 outputs configurable by means of plug-in modules (taps or distributors)
Download Details
