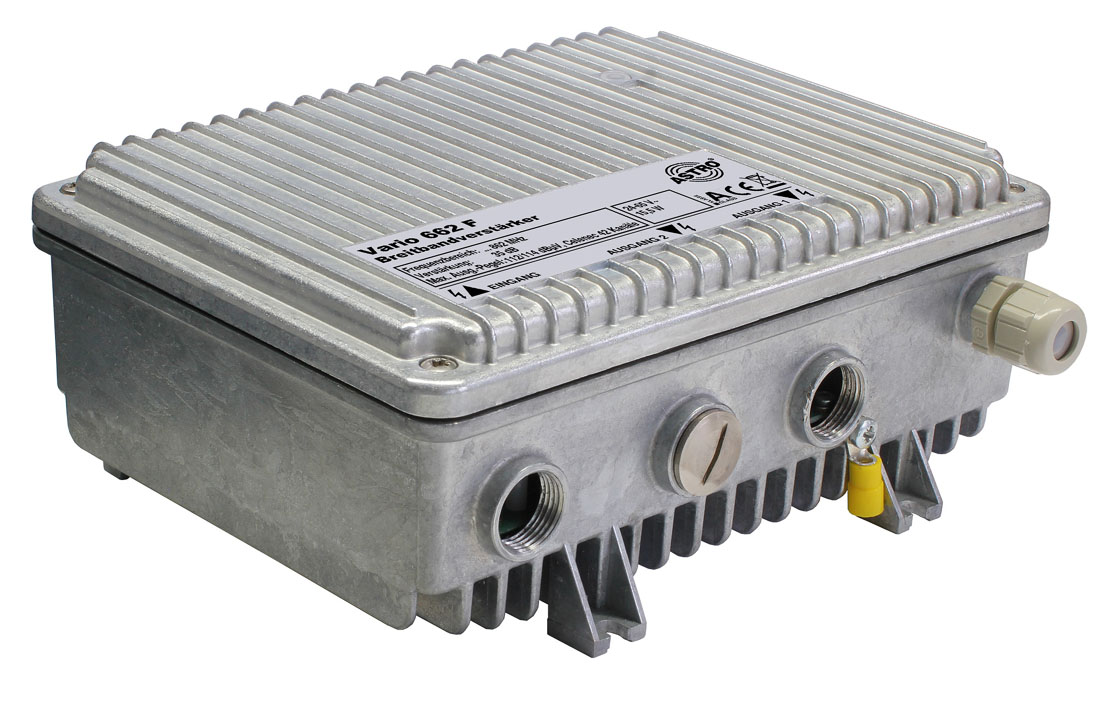

Remote feedable, modular broadband amplifier
with optional 65 MHz return path
VARIO 662 F
Specification
| Device type | Modular |
|---|---|
| Power supply | Remote |
| Frequency range | up to 1006 MHz |
| Forward path gain | 35-39 dB |
| Order number | 00217662 |
|---|---|
| EAN-Code | 4026187130442 |
Product Details
- with optional 65 MHz return path
- Pre-amplification gain 36.5 dB
- Pre-amplification output level 112 dBµV
- Return path amplification depending on return path module used
- Input attenuation 0 - 20 dB
- Input equaliser 0 - 20 dB
- Inverse input equaliser 0 - 10 dB
- Interstage attenuation 0 - 7 dB
- Interstage equaliser 0 -10 dB
- 20 dB measuring points at input and output
- 2 outputs configurable via plug-in modules (taps or distributors)
