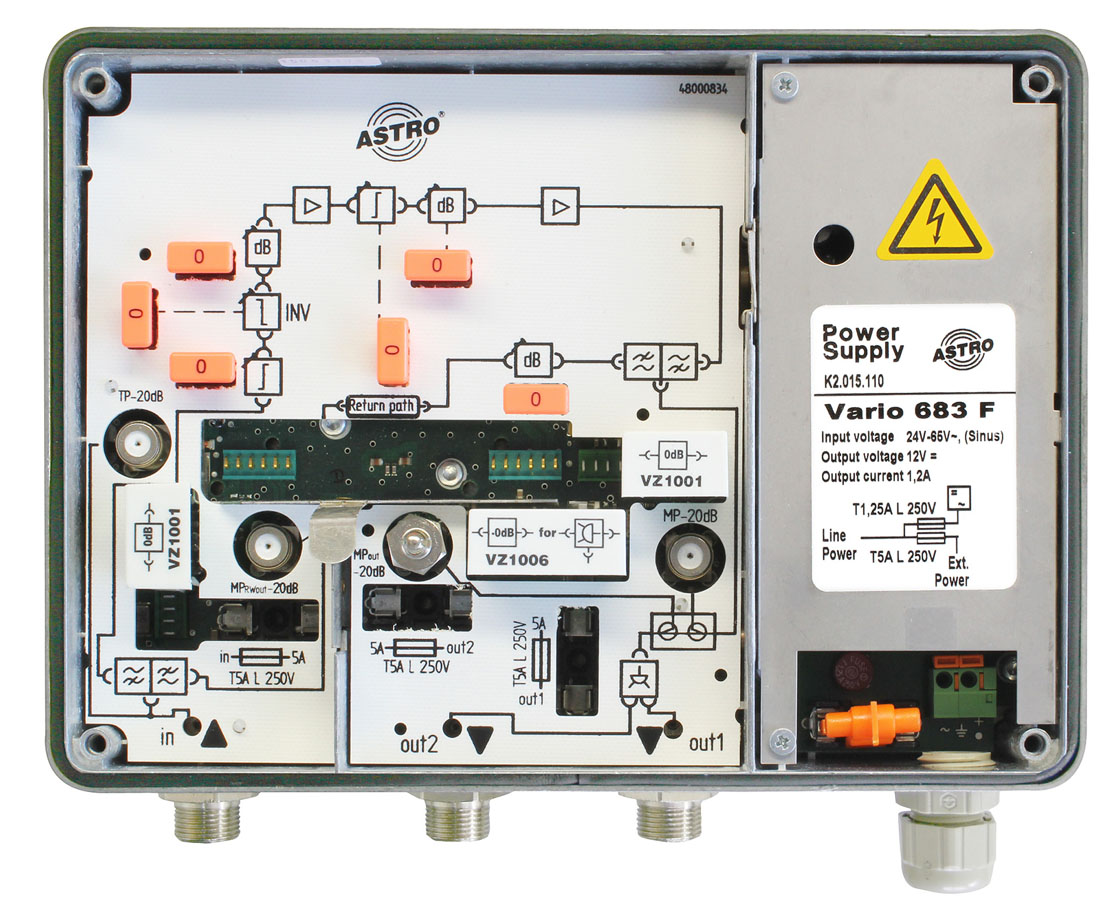

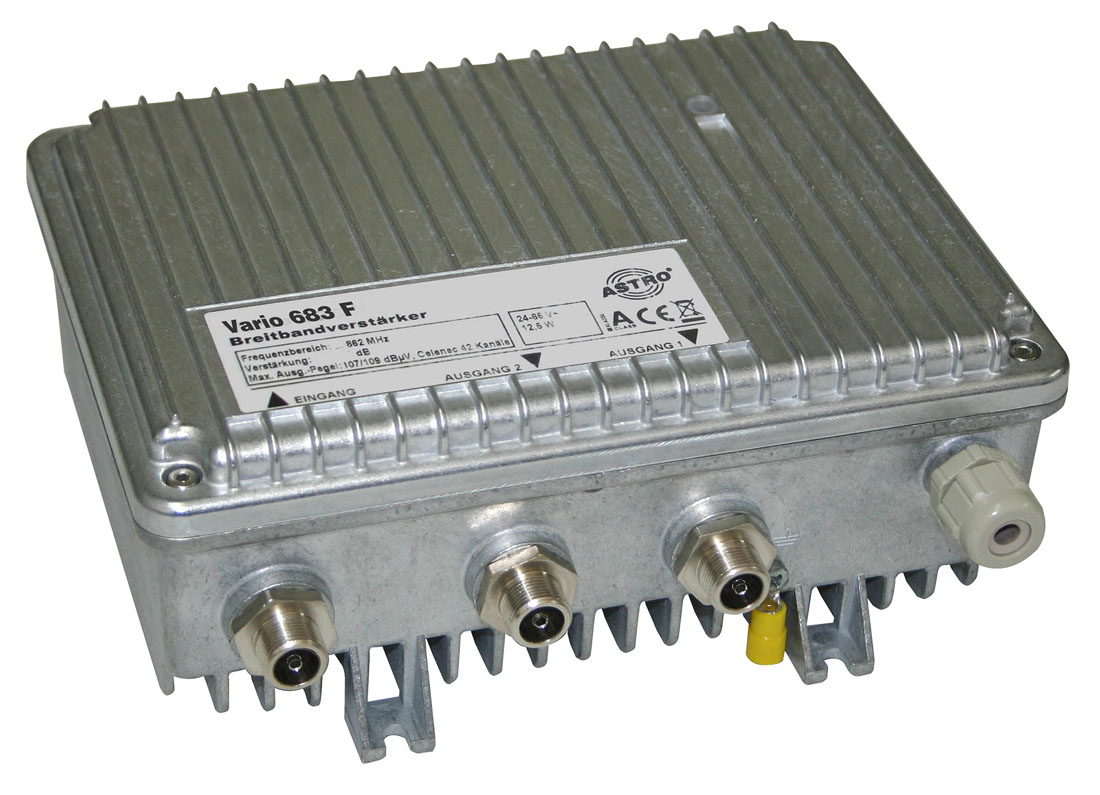

Remote feedable, modular broadband amplifier
with optional 65 MHz return path

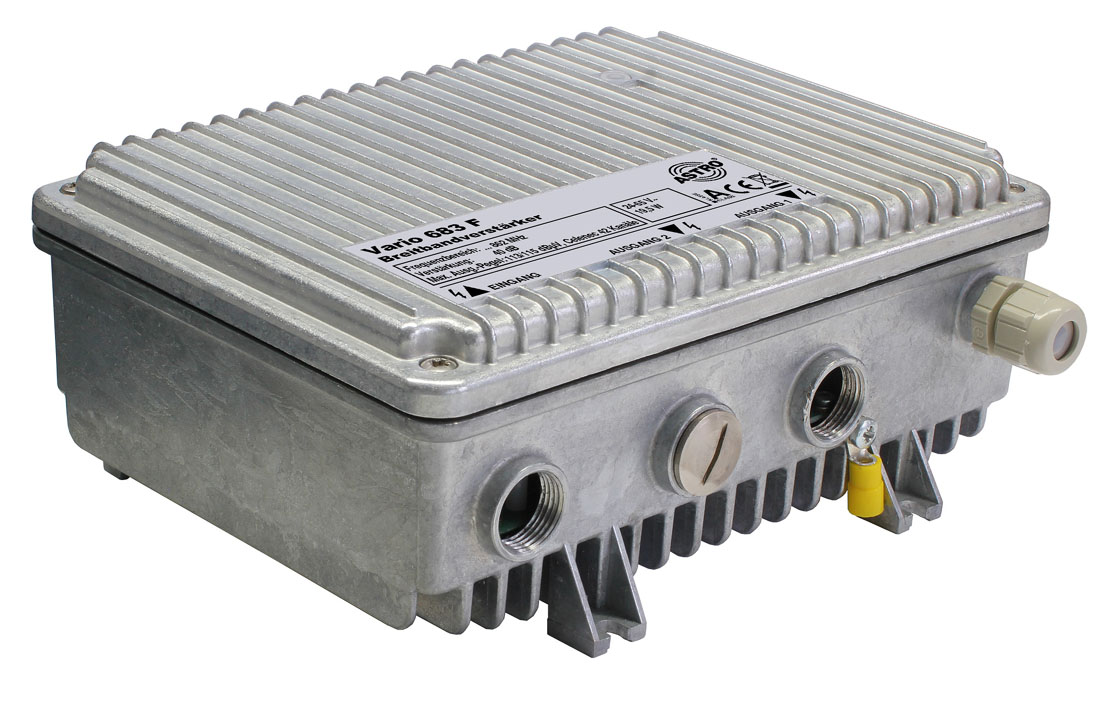

VARIO 683 F PG11
Specification
| Device type | Modular |
|---|---|
| Power supply | Remote |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Order number | 00217684 |
|---|---|
| EAN-Code | 4026187003050 |
Product Details
- with optional 65 MHz return path
- gain forward path 40 dB
- output level forward path 113 dBµV
- Gain in the return path depending on the return path module used
- Input attenuation 0 - 20 dB
- Equalizer input 0 - 20 dB
- inverse equalizer input 0 - 10 dB
- Interstage attenuation 0 - 7 dB
- Equalizer Interstage 0 -10 dB
- 20 dB Measuring points in input and output
- 2 outputs configurable by means of plug-in modules (taps or distributors)
Download Details
-
Anleitung VARIO 683 F EN pdf · 2mb
-
Datenblatt VARIO 683 F_VARIO 684 F EN pdf · 2mb
-

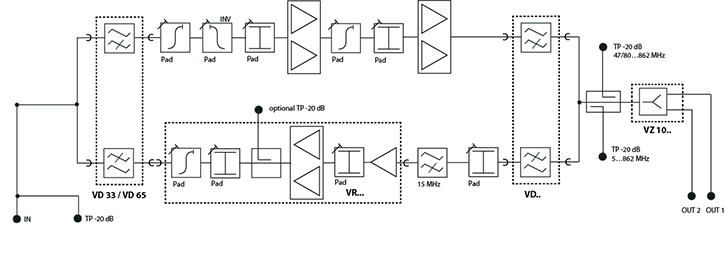

Blockschaltbild Vario 681_Vario 683 pdf · 2mb
