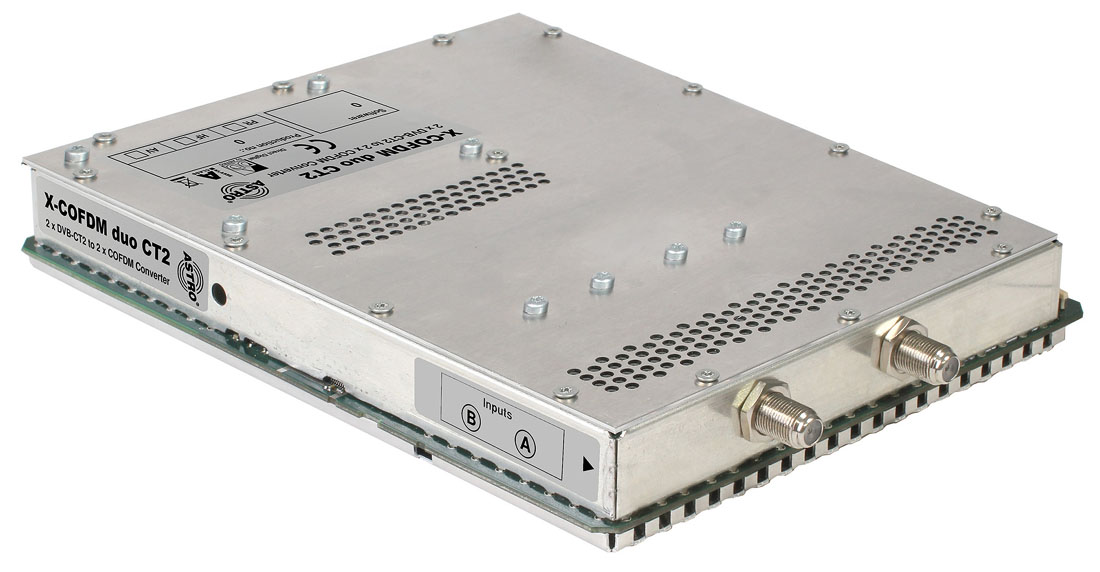

Signal converter DVB-C, DVB-T or DVB-T2 into COFDM

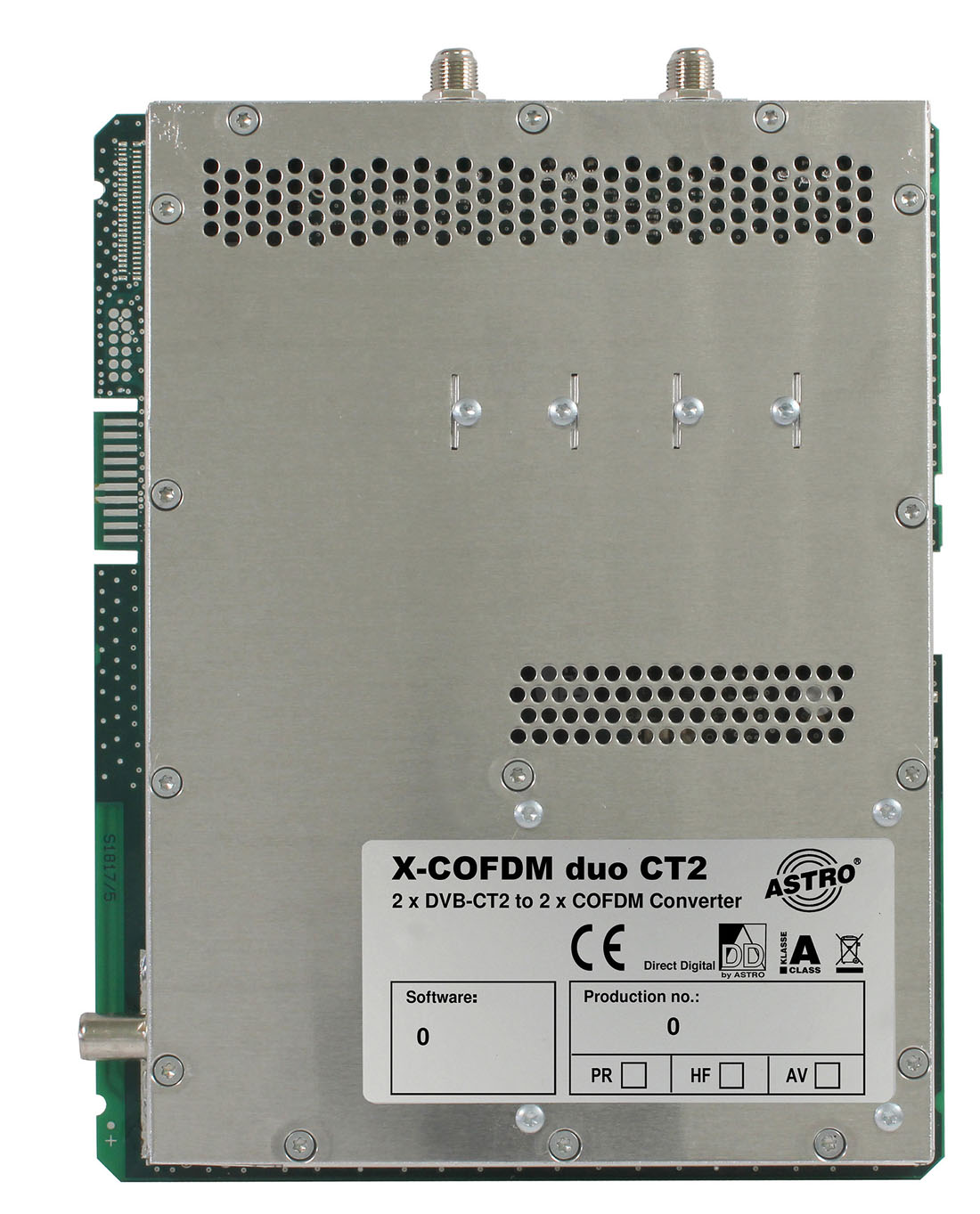

Signal converter DVB-C, DVB-T or DVB-T2 into COFDM - Image 2
Signal converter DVB-C, DVB-T or DVB-T2 into COFDM - Image 3

Signal converter DVB-C, DVB-T or DVB-T2 into COFDM

plugin card for modular base units X-8 twin and V16

X-COFDM duo CT2

Specification

Module type

Plug-in card
Input signal

DVB T2, DVB-C, DVB-T
Output signal

DVB-T
Order number

00330487

EAN-Code

4026187171414

No longer available

Product Details
  • plugin card for modular base units X-8 twin and V16

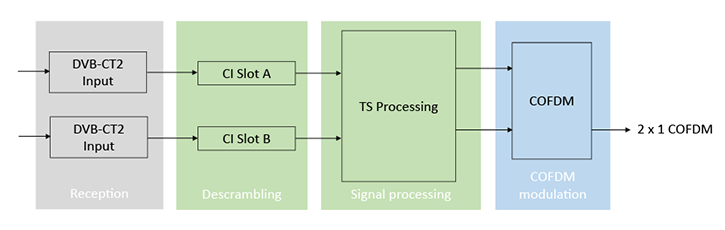

  • for processing 2 DVB-C, DVB-T or DVB-T2 signals into COFDM
  • integrated data rate adjustment
  • PCR correction
  • NIT generation
  • PID filter
  • WSS, teletext, VPS, different analogue TV standards programmable
  • outstanding output parameters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit

V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

Modular head-end base unit

V 16.1
for mounting up to 8 plugin cards of the X and V series

Modular head-end base unit

X-8 twin
with 8 slots
