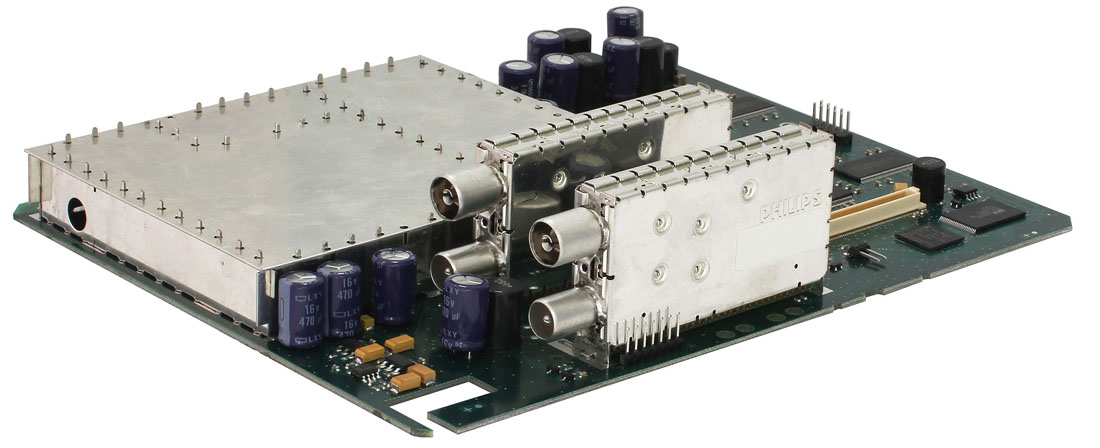

Signal converter 2 x DVB-C into 1 x 2 PAL
plugin card for modular base units X-2 twin, X-8 twin and V 16
X-DVB-C/Multinorm twin
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB-C |
| Output signal | PAL |
| Order number | 00330646 |
|---|---|
| EAN-Code | 4026187110871 |
No longer available
Product Details
- plugin card for modular base units X-2 twin, X-8 twin and V 16
- processing of 2 digital DVB-C TV programmes into 2 PAL adjacent channels in the frequenzy range 47 - 862 MHz
- free configuration via software
- complient to all common TV norms
- WSS, teletext, VPS, different analogue TV standards programmable
- outstanding signal parameters by Direct Digital Technology
Download Details
-
Datenblatt V 812_X-DVB-C Multinorm twin pdf ยท 2mb
-
Datenblatt V 812_X-DVB-C Multinorm twin [en] pdf ยท 2mb
-

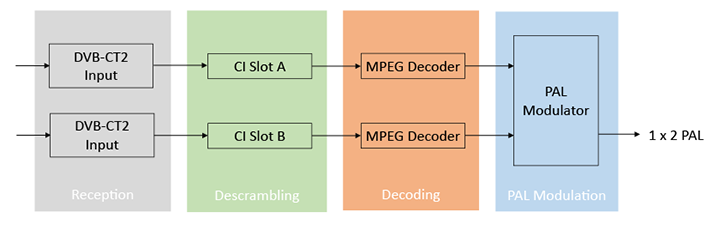

Blockschaltbild V 812_X-DVB-C Multinorm twin pdf ยท 2mb
