Signal converter 2 x DVB-C, DVB-T or DVB-T2 into PAL
plugin card for modular base units X-8 twin and V 16
X-DVB-CT2/PAL duo (AC3)
Specification
| Module type | Plug-in card |
|---|---|
| Input signal | DVB T2, DVB-C, DVB-T |
| Output signal | PAL |
| Order number | 00330605 |
|---|---|
| EAN-Code | 4026187171285 |
No longer available
Product Details
- plugin card for modular base units X-8 twin and V 16
- for processing of 2 DVB-C, DVB-T or DVB-T2 signals into PAL
- integrated data rate adjustment
- PCR correction
- NIT generation
- PID filter
- HD in SD Downscaling
- MPEG4, AAC, WSS, teletext, VPS, different analogue TV standards programmable
- AC-3 decoding
- outstanding output parameters by Direct Digital Technology
Download Details
-
Datenblatt V 713_X-DVB-CT2 PAL duo pdf · 2mb
-
Datenblatt V 713_X-DVB-CT2 PAL duo [en] pdf · 2mb
-

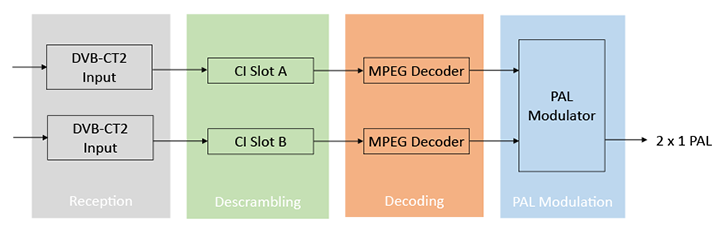

Blockschaltbild V 713_X-DVB-CT2 PAL duo pdf · 2mb
