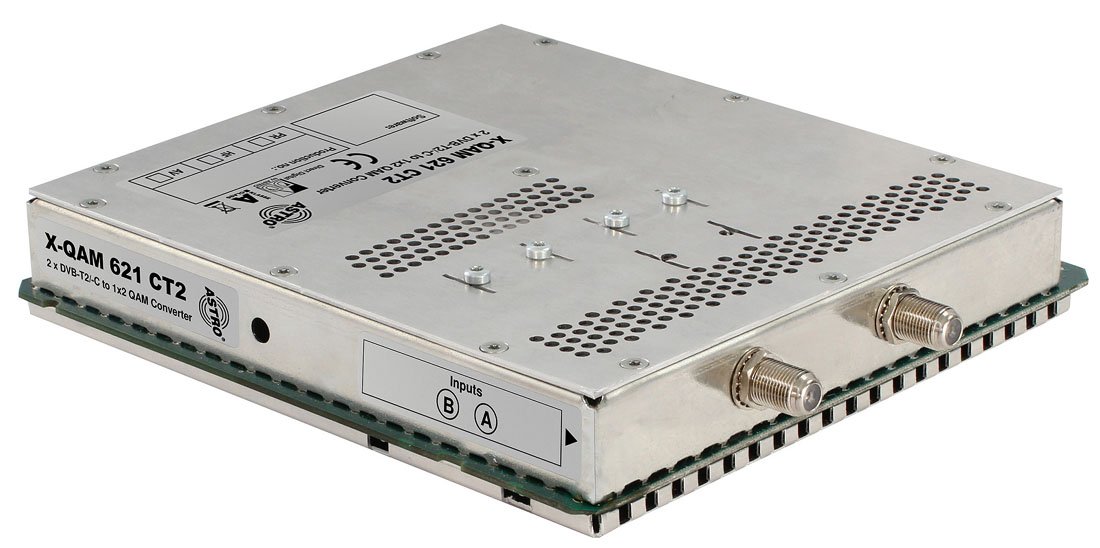

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 1 x 2 QAM

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 1 x 2 QAM - Image 2

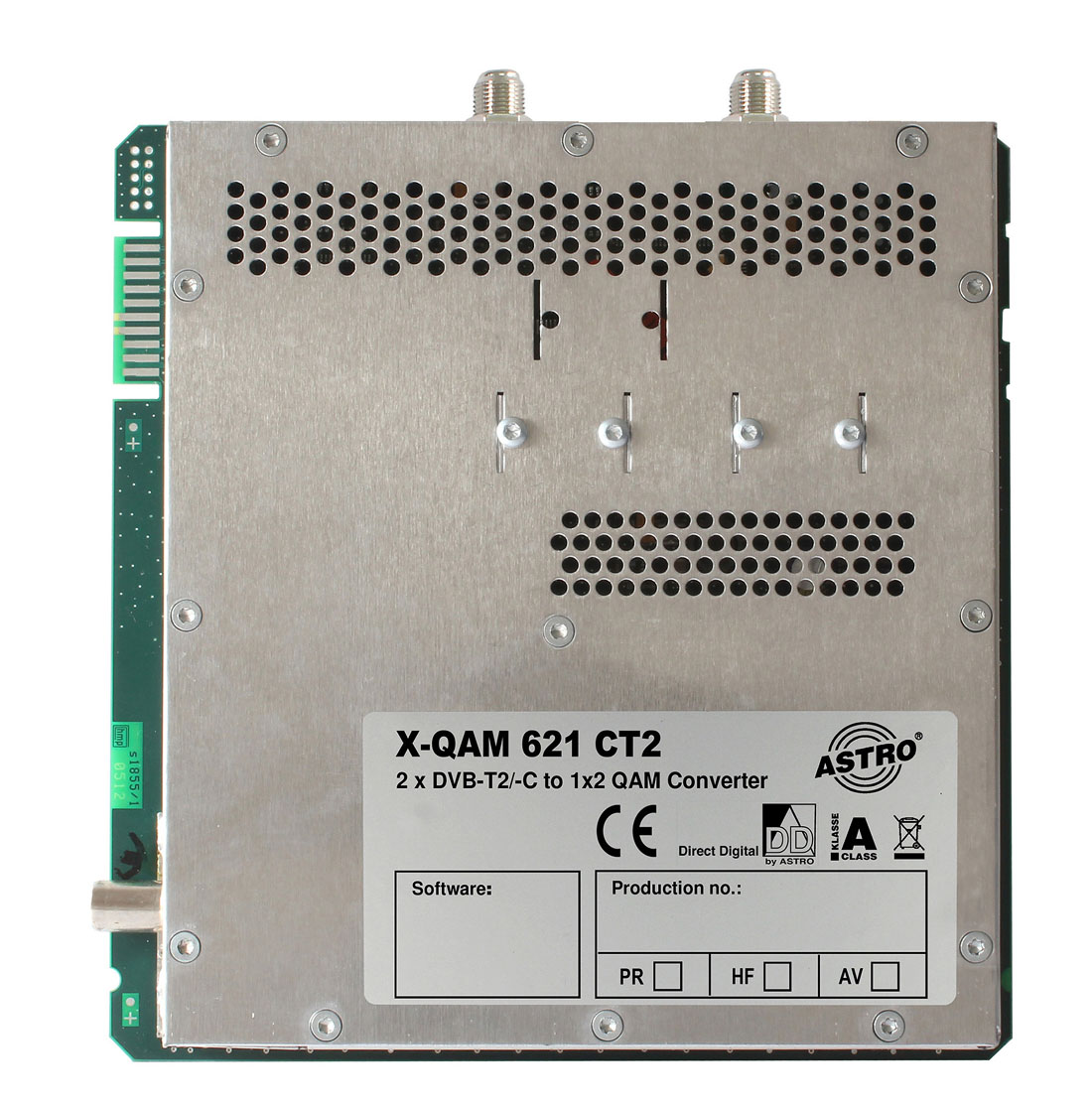

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 1 x 2 QAM - Image 3

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 1 x 2 QAM

plugin card for modular base units X-8 twin and V 16

X-QAM 621 CT2

Specification

Module type	Plug-in card
Input signal	DVB T2, DVB-C, DVB-T
Output signal	DVB-C

Order number	00380623
EAN-Code	4026187161415

No longer available

Product Details

plugin card for modular base units X-8 twin and V 16

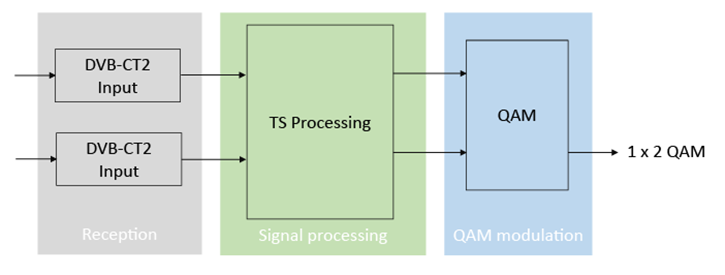

for processing of 2 DVB-C, DVB-T or DVB-T2 signals into 2 QAM adjacent channels
integrated data rate adjustment
PCR correction
NIT generation
PID filter
outstanding output parameters by Direct Digital Technology

Download Details

Anleitung V 506 und X-QAM 621 CT2 [en] pdf · 2mb
Anleitung V 506 und X-QAM 621 CT2 pdf · 2mb
Datenblatt V 506_X-QAM 621 CT2 [en] pdf · 2mb
Datenblatt V 506_X-QAM 621 CT2 pdf · 2mb
Blockschaltbild V 506_X-QAM 621 CT2 pdf · 2mb
