Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM

Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM

Name: Signal converter 2 x DVB-C, DVB-T or DVB-T2 into 2 x 1 QAM - Satellite, Cable, IPTV, Optical Products | ASTRO Bit
SKU: X-QAM duo 7 CT2 CI

plugin card for modular base unit X-8 twin or V 16

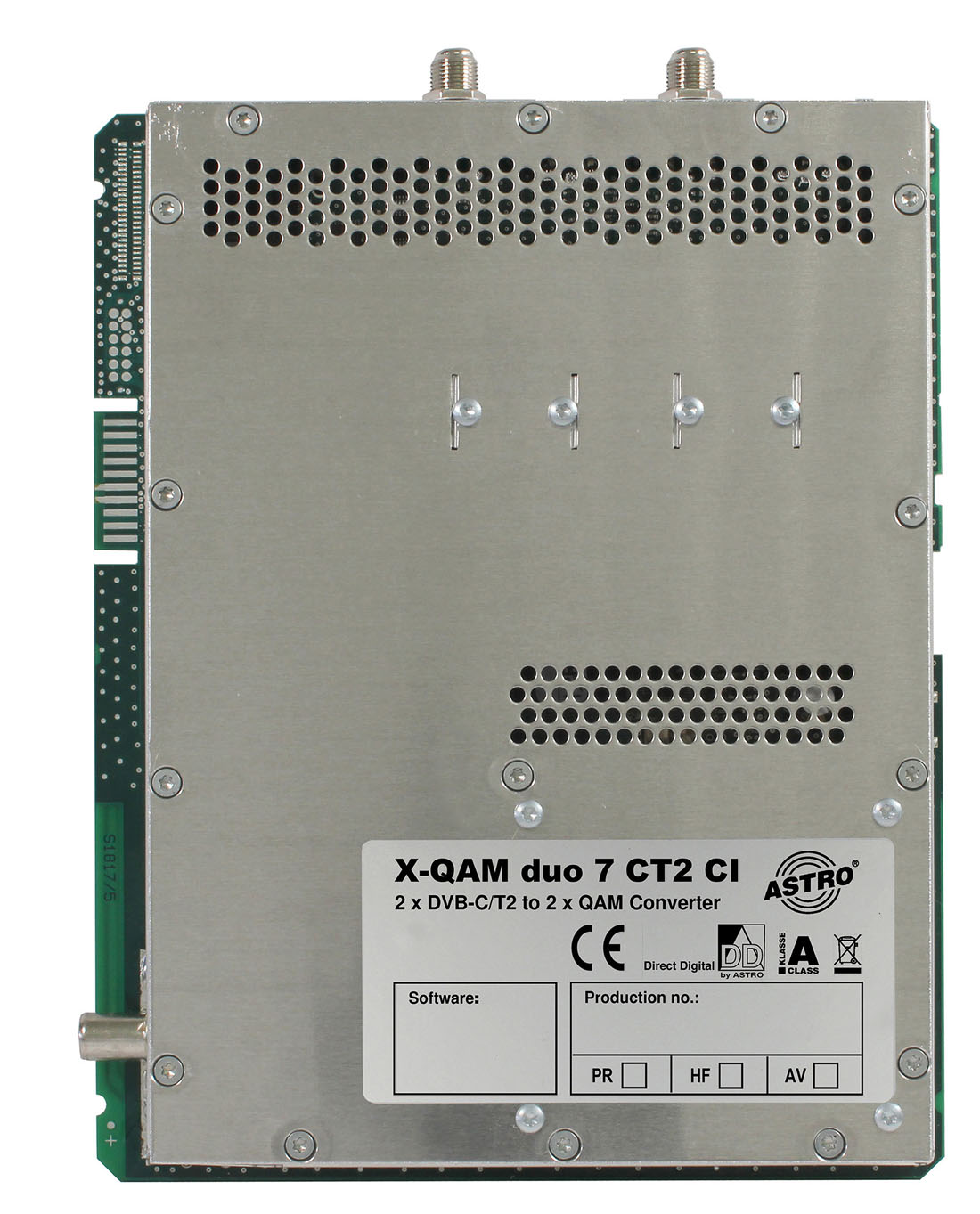

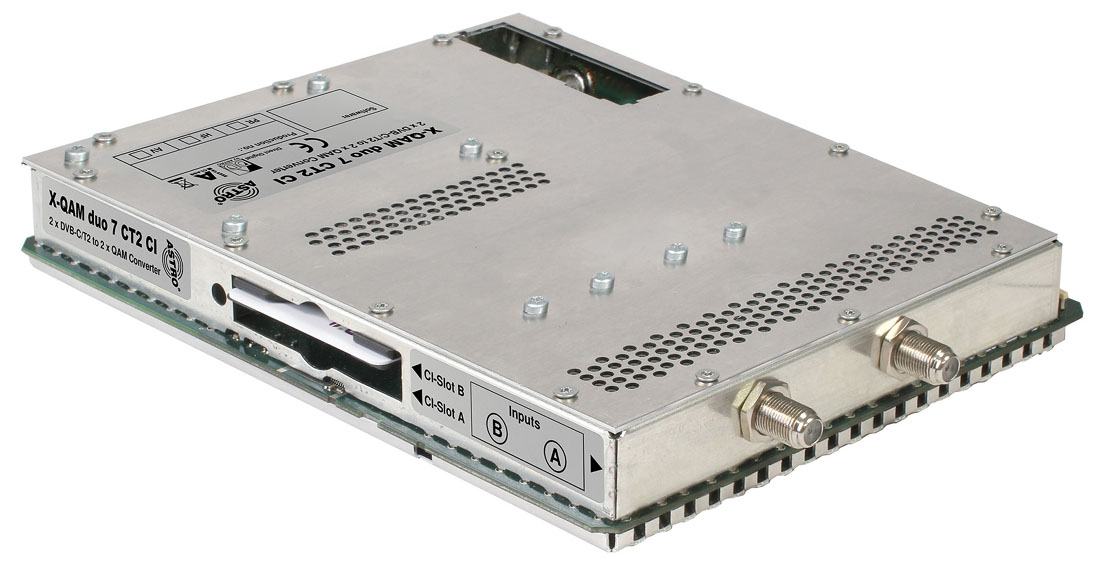

X-QAM duo 7 CT2 CI

Specification

Module type	Plug-in card
Input signal	DVB T2, DVB-C, DVB-T
Output signal	DVB-C

Order number	00330486
EAN-Code	4026187171407

No longer available

Product Details

plugin card for modular base unit X-8 twin or V 16

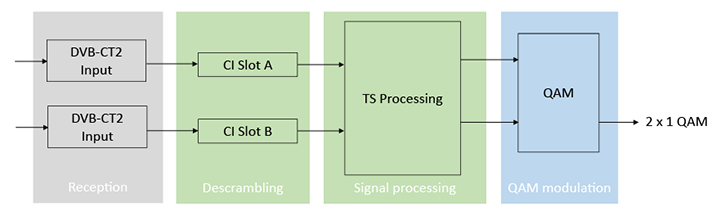

for processing of 2 DVB-C, DVB-T or DVB-T2 signals into 2 independent QAM output channels
integrated data rate adjustment
PCR correction
NIT generation
PID filter
2 cascadable CI interfaces with Multi Channel Descrambling
outstanding output parameters by Direct Digital Technology
