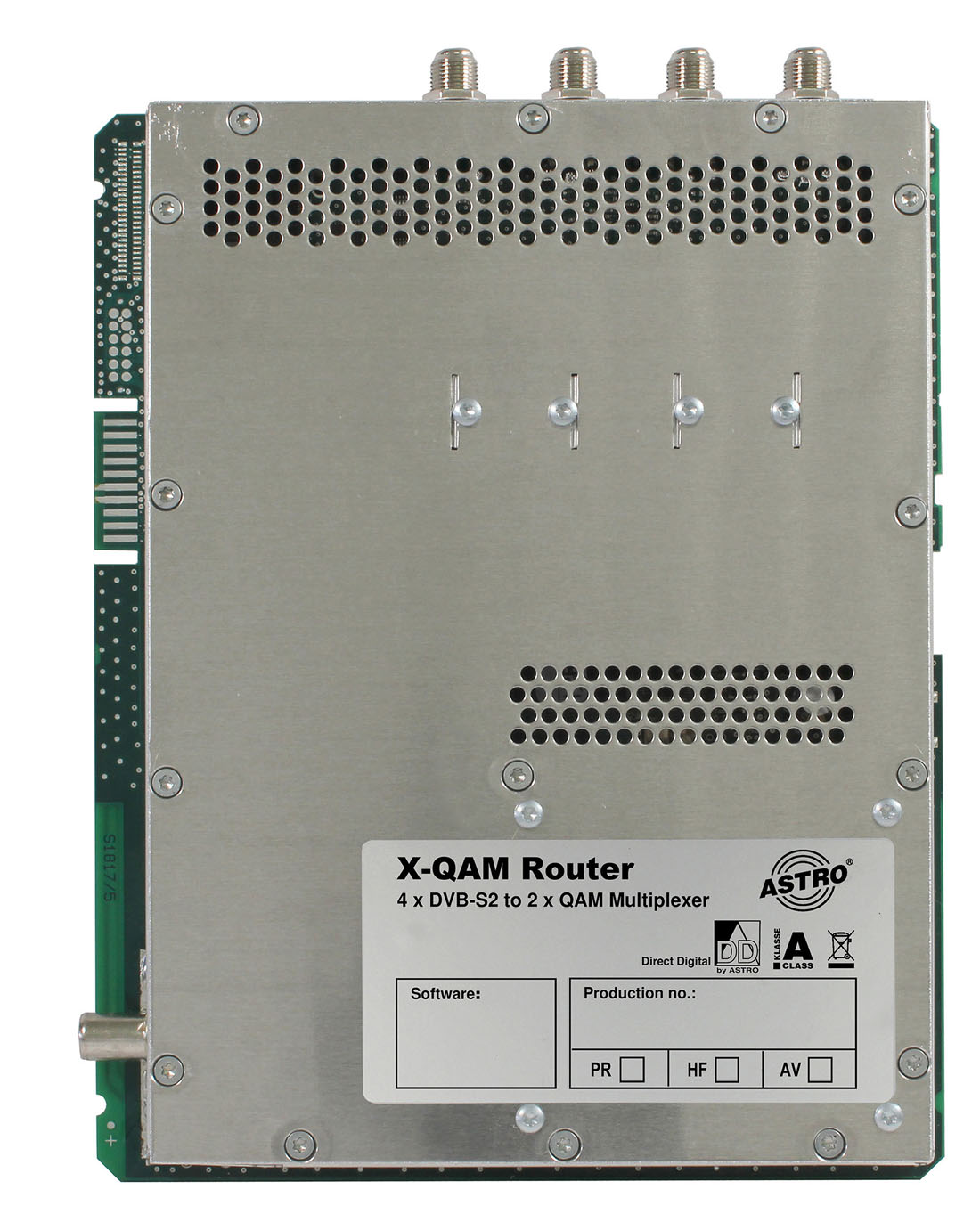

Signal converter 4 x DVB-S2 into 2 x 1 QAM
Signal converter 4 x DVB-S2 into 2 x 1 QAM - Image 2

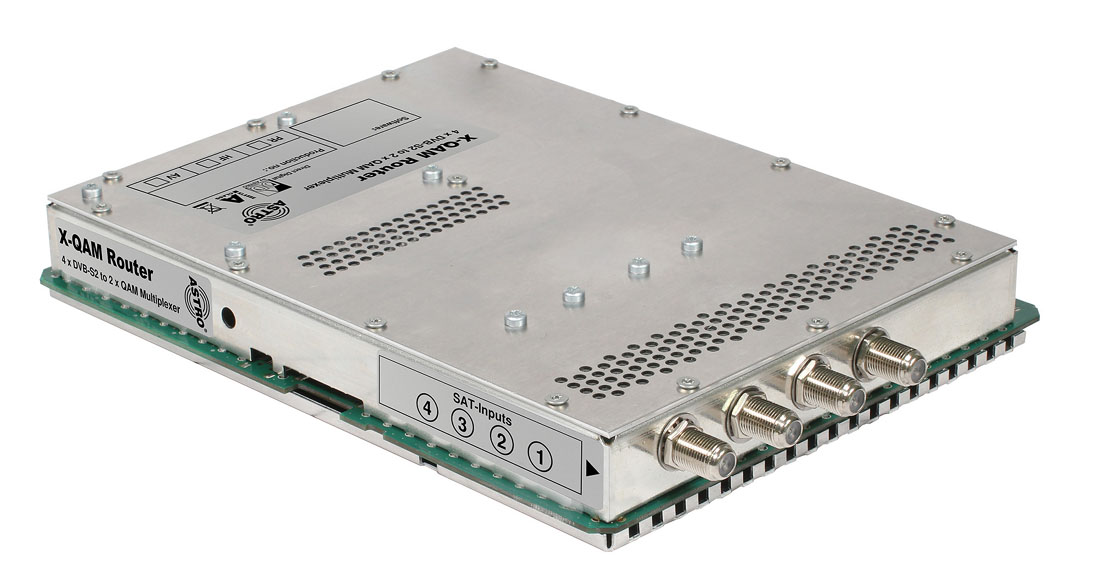

Signal converter 4 x DVB-S2 into 2 x 1 QAM - Image 3

Signal converter 4 x DVB-S2 into 2 x 1 QAM

plugin card for modular base units X-8 twin and V 16

X-QAM Router

Specification

Module type

Plug-in card
Input signal

DVB-S2
Output signal

DVB-C
Order number

00380326

EAN-Code

4026187120689

No longer available

Product Details
  • plugin card for modular base units X-8 twin and V 16

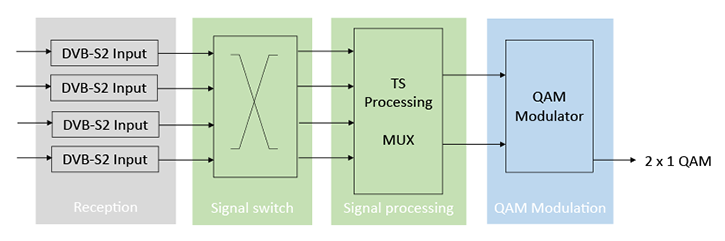

  • multiplexing of 4 independent DVB-S(2) input signals into zwei independent QAM output channels
  • Content of both QAM channels can be selected from every input.
  • Online-Service-PID-Filter
  • NIT generation
  • outstanding output paramters by Direct Digital Technology
Download Details

Product is combinable with

Modular head-end base unit

V 16.2
base unit for mounting up to 8 plugin cards of the X and V series

Modular head-end base unit

X-8 twin
with 8 slots

Modular head-end base unit

V 16.1
for mounting up to 8 plugin cards of the X and V series
