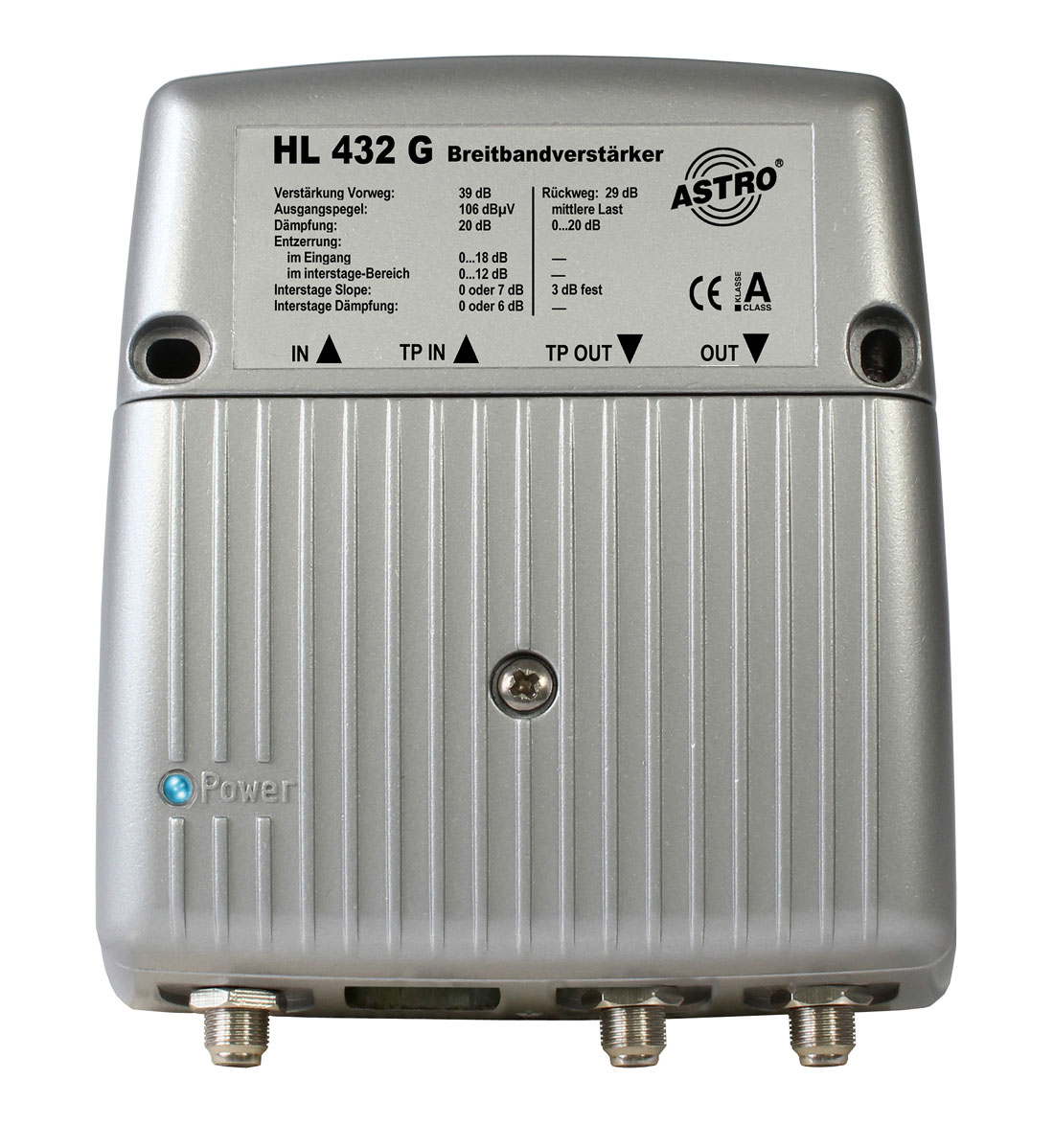

Universal broadband amplifier
HL 432 G
Specification
| Device type | Compact |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | 35-39 dB |
| Order number | 00217432 |
|---|---|
| EAN-Code | 4026187141219 |
No longer available

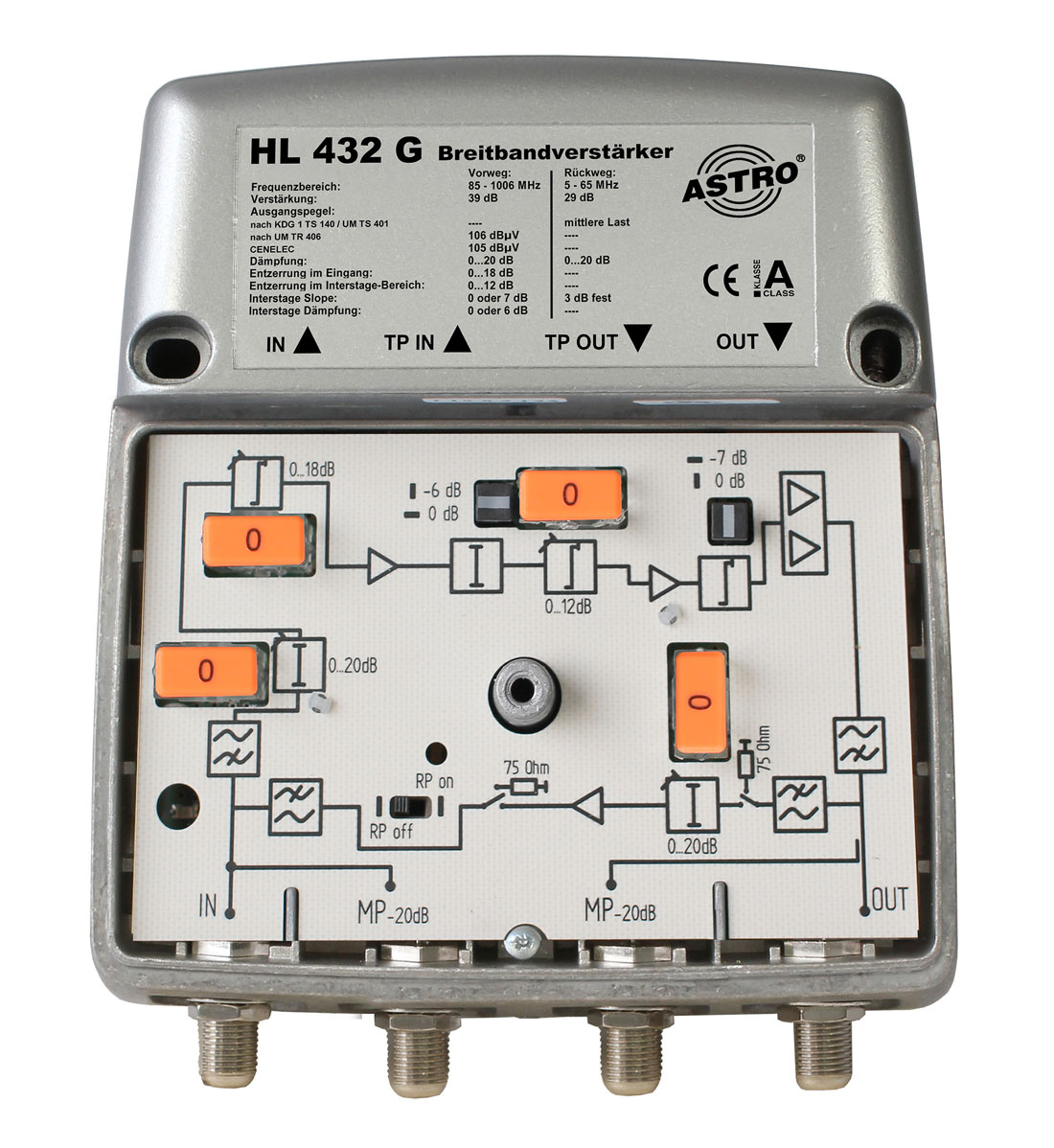

Product Details
- Broadband amplifier with active 65 MHz return path
- High return path modulation for operational reliability even with multi-channel load
- Input attenuation adjustable via pad
- Input equaliser adjustable via pad
- Interstage equaliser adjustable via pad
- Interstage slope and interstage attenuation pluggable
- Attenuation in the return path adjustable via pad
- Measuring points in input and output
- Pre-amplifier up to 1006 MHz
- Pre-amplifier gain 39 dB
- Pre-amplifier output level 105 dBµV
- Return path gain 29 dB
- Return path output level 107 / 112 dBµV (2 / 3 transmitters)
- Attenuation control, forward 0 - 20 dB
- Equaliser, forward input 0 - 18 dB
- Equaliser, forward interstage 0 - 12 dB
- Attenuation control, return path 0 - 20 dB
- 20 dB measuring point in input and output
- UM type class: 7 - 12 U
Download Details
-
Manual HL 432 G und HL 433 G DE pdf · 2mb
-
Block diagram HL 432 G_HL 433 G pdf · 2mb
-
Data sheet HL 432 G_HL 433 G DE pdf · 2mb
