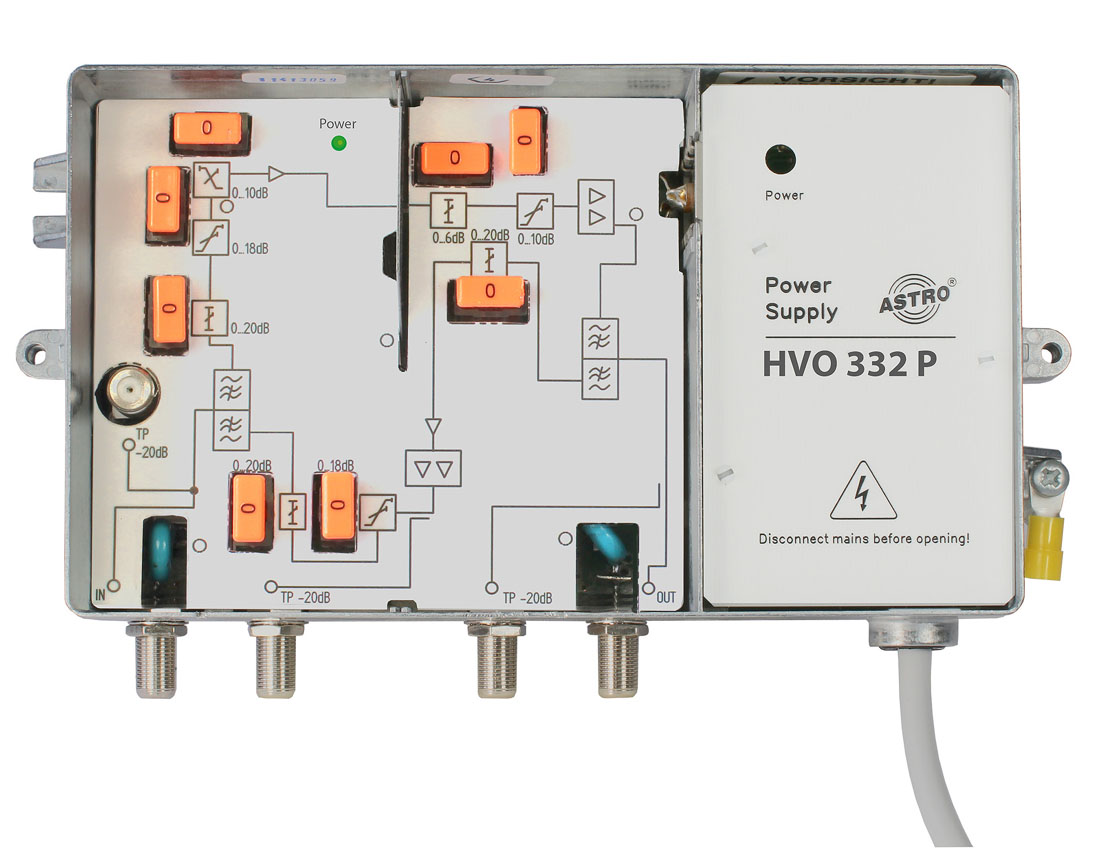

Broadband amplifier

HVO 332 P

Order number	00217300
EAN-Code	4026187141196

No longer available

Product Details

Broadband amplifier with active 65 MHz return path
High output level with high C/N thanks to push-pull

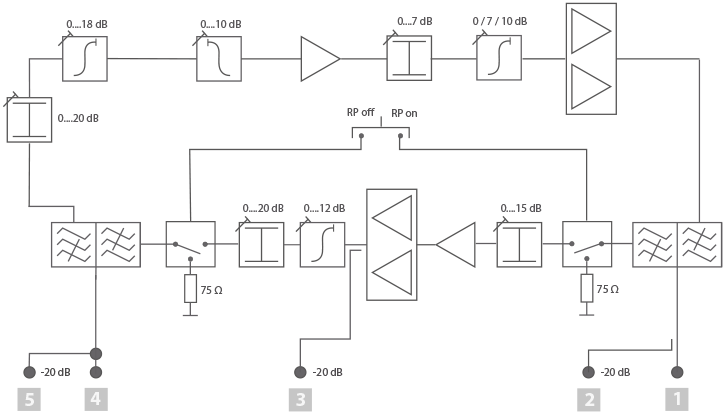

Diplex filter and return path amplifier on-board
32 dB gain in the forward path
22 dB gain in the return path
Configuration via switches and pads
Measurement points in input and output, in return path additionally before the adjustment elements in the output
Configuration via jumpers and pads
Forward up to 1006 MHz
Output level forward 106 dBµV
Output level return path 116 / 120 dBµV (2 / 3 transmitters)
UM type class: HVA amplifier
