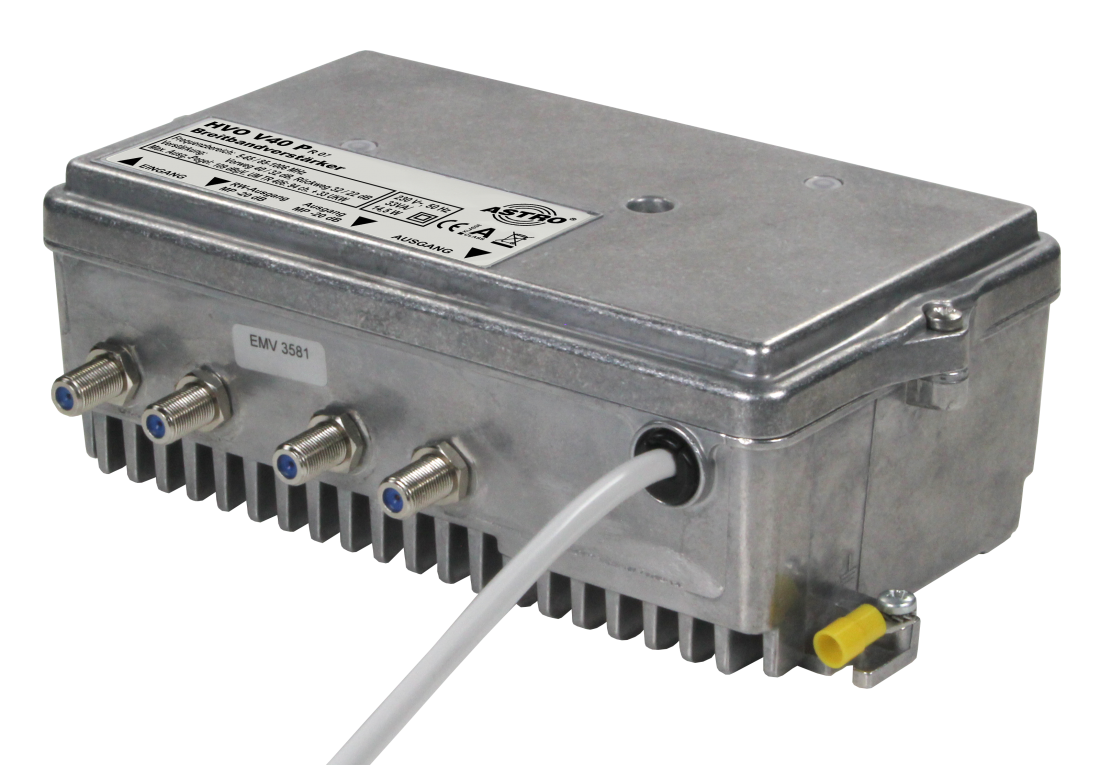

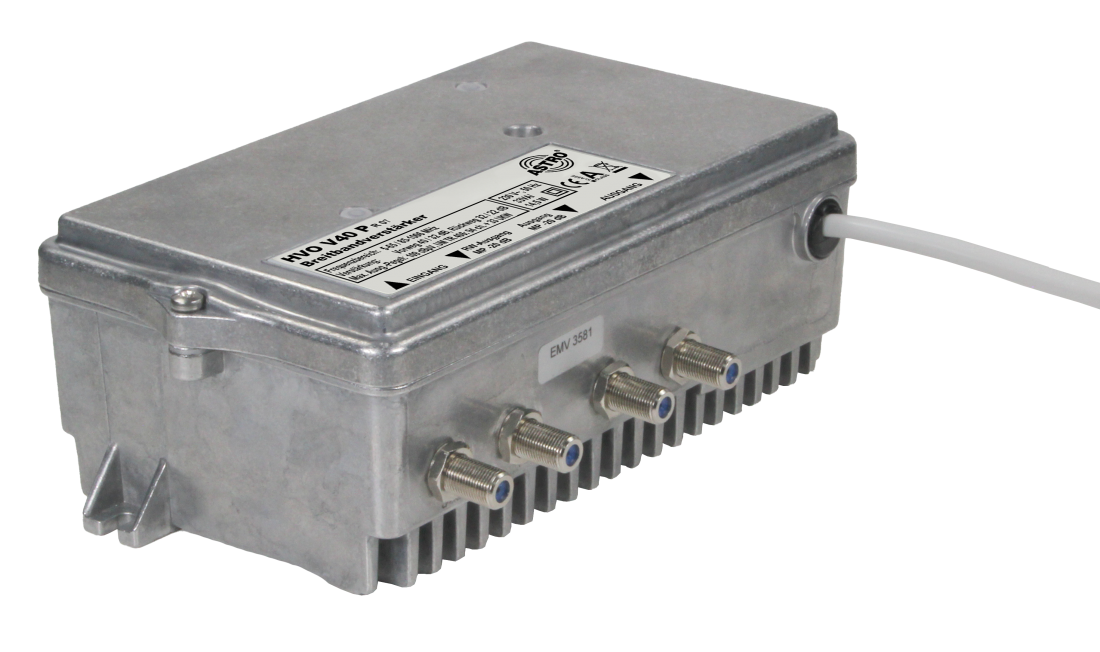

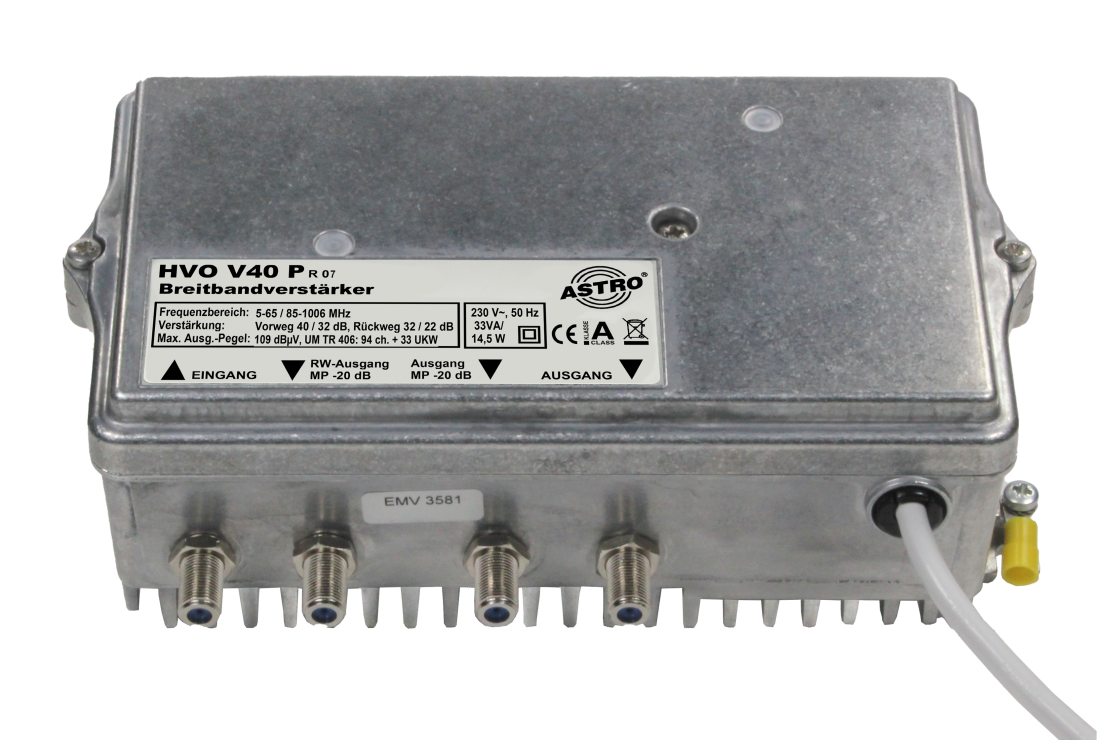

Broadband amplifier

Broadband amplifier - Image 2

Broadband amplifier - Image 3

Broadband amplifier - Image 4

Broadband amplifier - Image 5

Broadband amplifier

Login to see prices

with active 65 MHz return path

HVO V40 P

Specification

Device type	Compact
Power supply	Local
Frequency range	up to 1006 MHz
Forward path gain	>39 dB
Approval by network operator	Vodafone West GmbH

Order number	00217400
EAN-Code	4026187160357

Product Details

Broadband amplifier with active 65 MHz return path
high output level at high C/N by push-pull
Diplex filter and return path amplifier on-board
40 / 32 dB gain in advance (pluggable via jumper)
32 / 22 dB gain in return path (pluggable via jumper)
Interstage damping in forward and return path
switched signal paths are indicated via LED

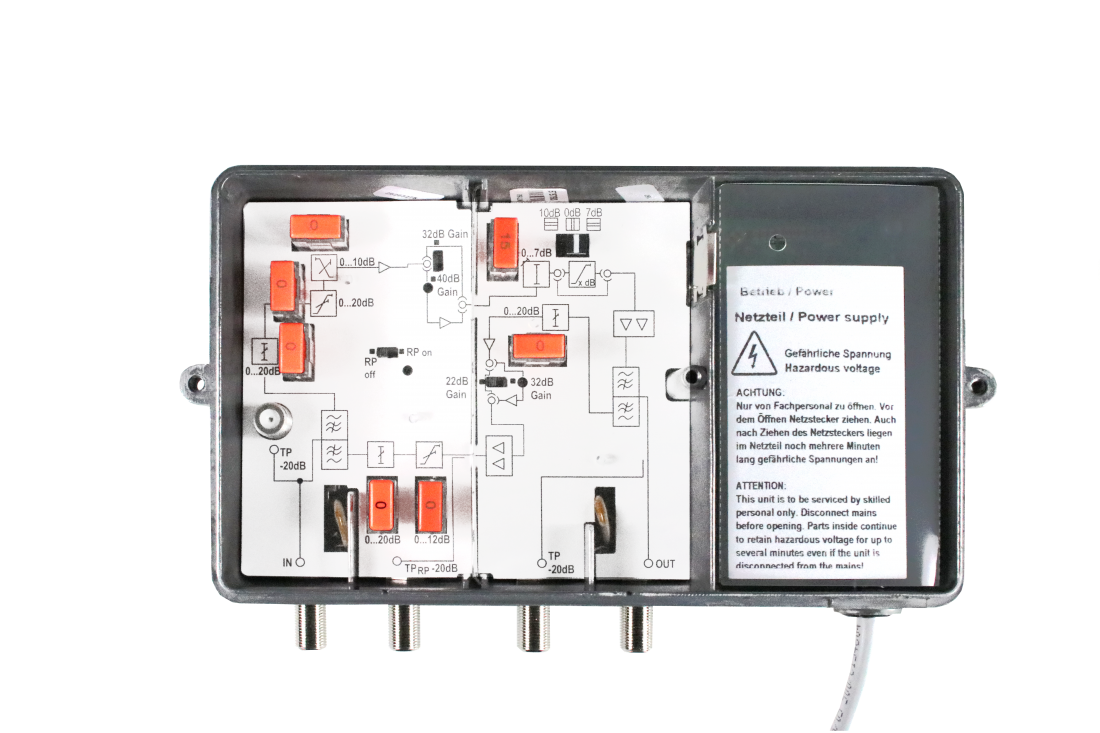

Configuration via jumpers and pads
Measuring points in input and output
Advance to 1006 MHz
Output level Preliminary 110 dBµV
Output level return path 116 / 112 dBµV (2 / 3 transmitter)
Unitymedia certified, type class line and distribution amplifiers in cascade
released by NetCologne
