Optical interconnection point with RF receiver

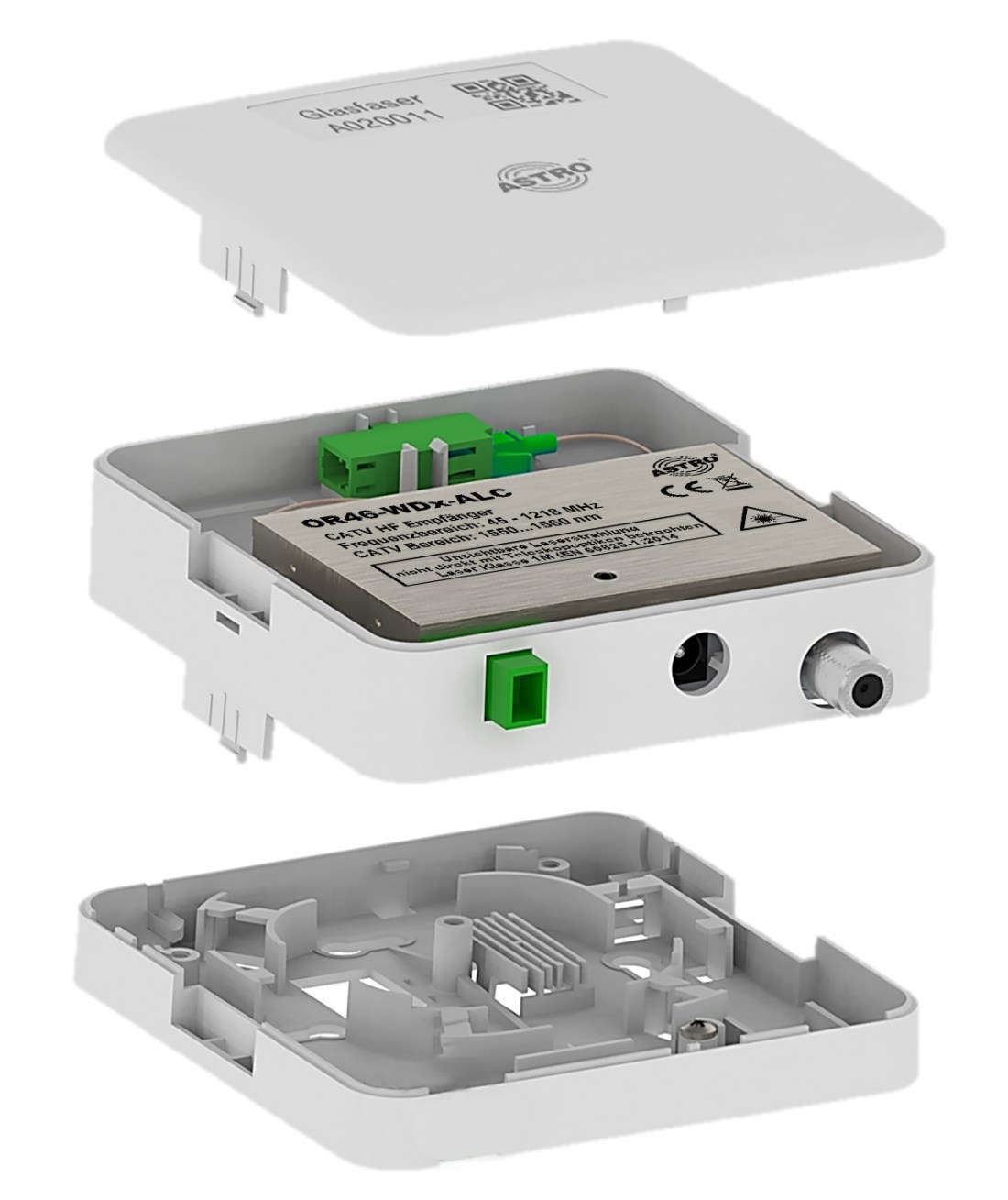

Plastic lid housing for 4 splices with the option of pure passive function and optical RF receiver for CATV

OFN46-WDx-ALC

Type	Residential connection points

Order number	00212250
EAN-Code	4026187270292

Product Details

Plastic lid housing for 4 splices with the option of pure passive function and optical RF receiver for CATV
CATV RF converter for up to 1.218 MHz with transparent GPON / XG-PON /XGS-PON / NG-PON / loop option
AGC range for CATV -8 dBm … +2 dBm, maximum range -12 dBm .. +2 dBm
Plastic housing with or without CATV optical receiver
CATV range (pass: 1550 ..1560 nm)
RF frequency range 45 - 1218 MHz
AC adapter plug-in power supply +12 VDC with ECO, EMC and Product Safety Certificates
Very low power consumption ≤ 2 W
