Signal converter IP to PAL / NTSC
Signal converter IP to PAL / NTSC - Image 2
Signal converter IP to PAL / NTSC - Image 3
Signal converter IP to PAL / NTSC - Image 4

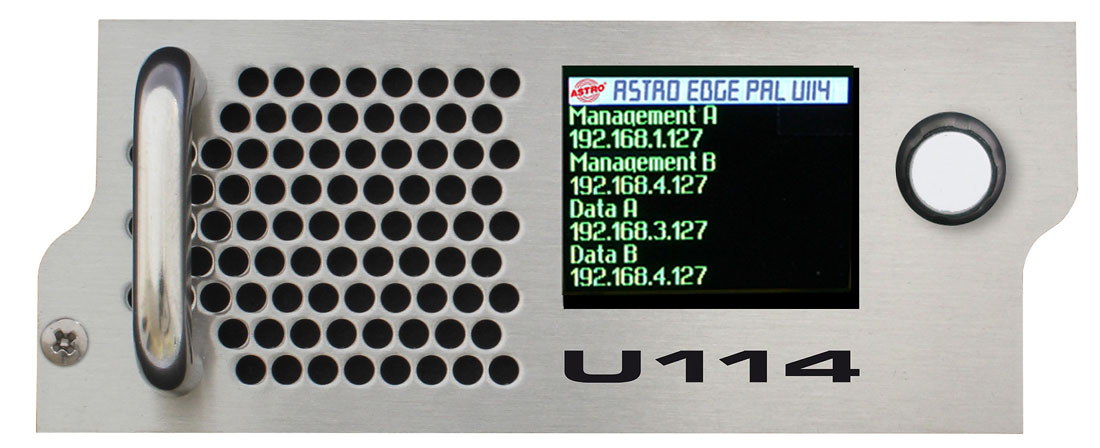

Signal converter IP to PAL / NTSC

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes

U 114

Specification

Module type

IP in PAL converter
Order number

00380114

EAN-Code

4026187611125

No longer available

Product Details

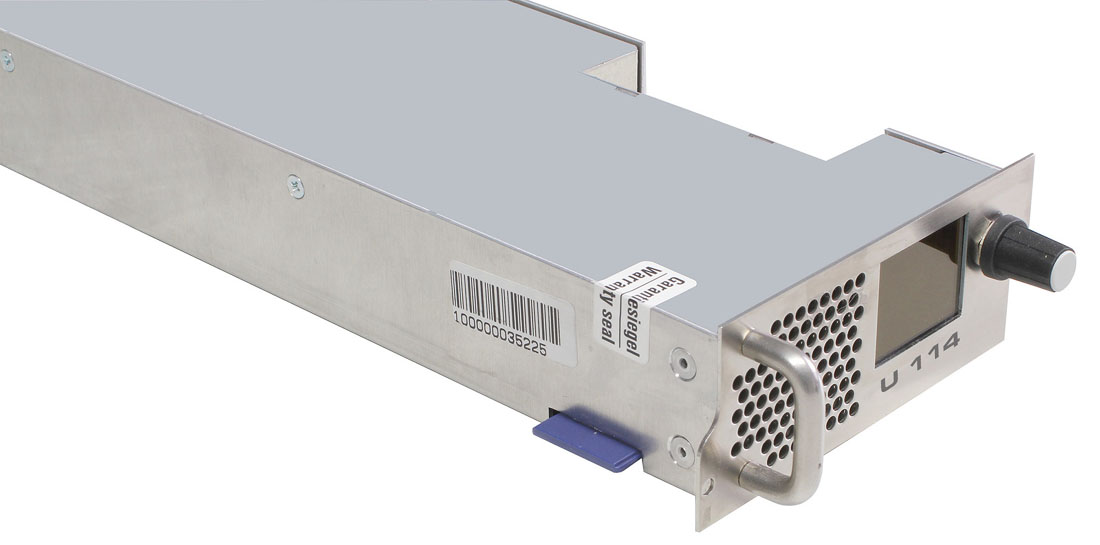

  • plug-in module for U 100 base unit

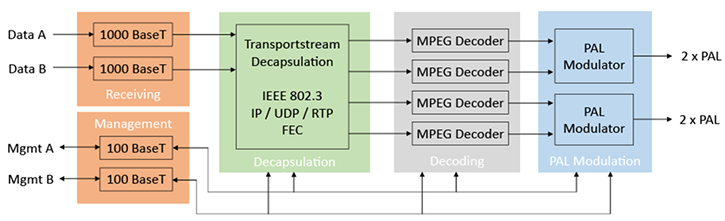

  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS in 4 standard PAL programmes
  • PAL programmes are led through as two pairs of adjacent channels
  • outstanding signal parameters by Direct Digital technology  (Video-S/N: typ. 66 dB; residual carrier accuracy: 1 %)
  • WSS, Teletext, VPS, programmable ticker, RTP, FEC, IGMPv3
  • optionally available output channel filters (U-KF) allow for maintaining the high sigal quality even after combining
  • user friendly configuration via web browser
  • monitored fan
