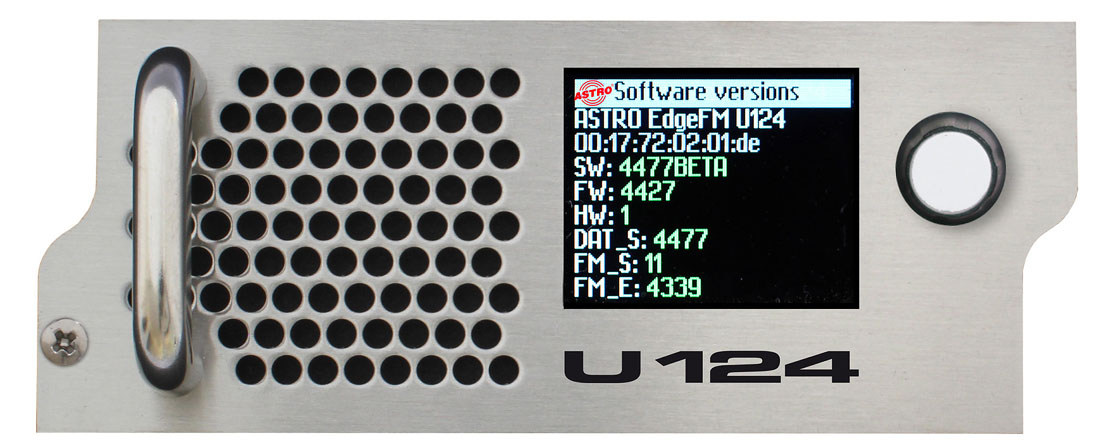

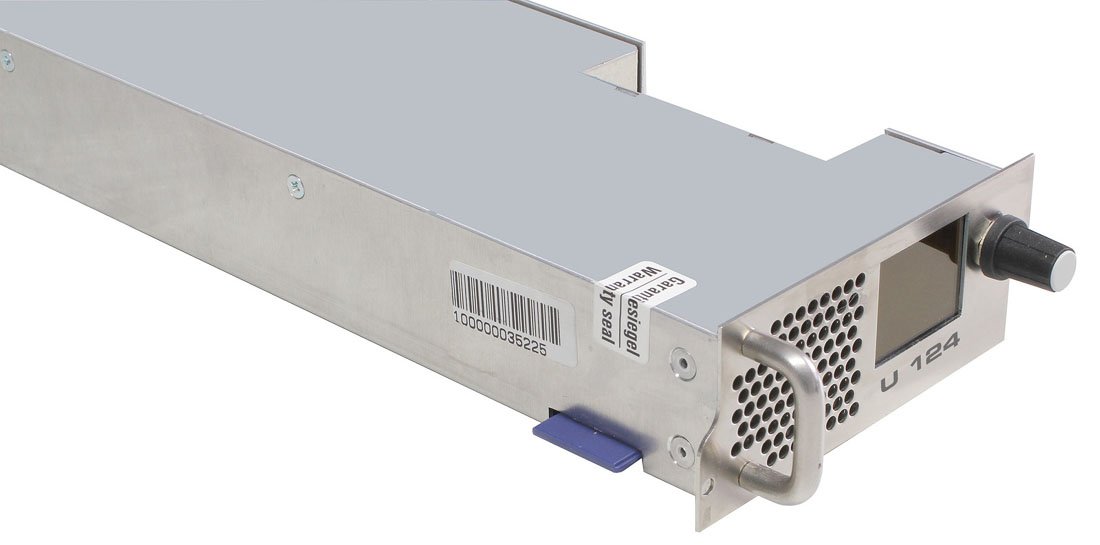

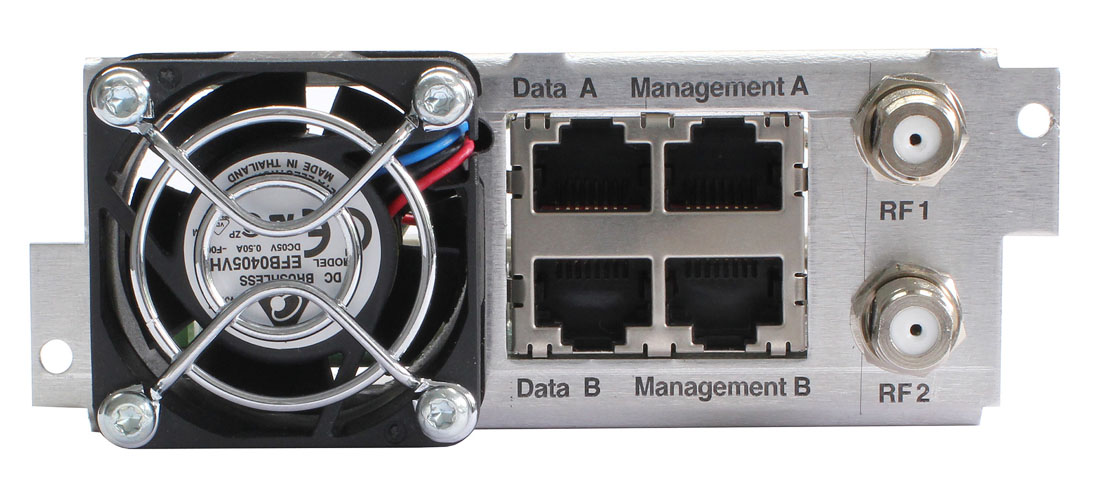

Signal converter IP to FM
Signal converter IP to FM - Image 2
Signal converter IP to FM - Image 3
Signal converter IP to FM - Image 4

Signal converter IP to FM

up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS into 2 x 8 standard FM channels

U 124

Specification

Module type

IP in DVB-C2 converter
Order number

00380124

EAN-Code

4026187611118

No longer available

Product Details
  • plug-in module for U 100 base unit

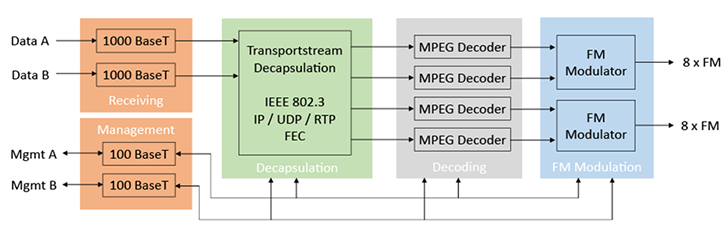

  • for processing of up to 4 IP multicast groups of a Gigabit Ethernet MPEG TS into 2 x 8 standard FM channels
  • FM channels are led through as two groups consisting of 8 channels
  • outstanding signal parameters by Direct Digital technology
  • static and dynamic RDS are supported (radiotext, PTY, PS and CT)
  • user friendly configuration via web browser
  • monitored fan
Download Details

Product is combinable with

Base unit

U 100-48
48 V version, for mounting up to 3 plugin modules of the U 100 series

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

Management controller

U 100-C
for U 1xx devices

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262
