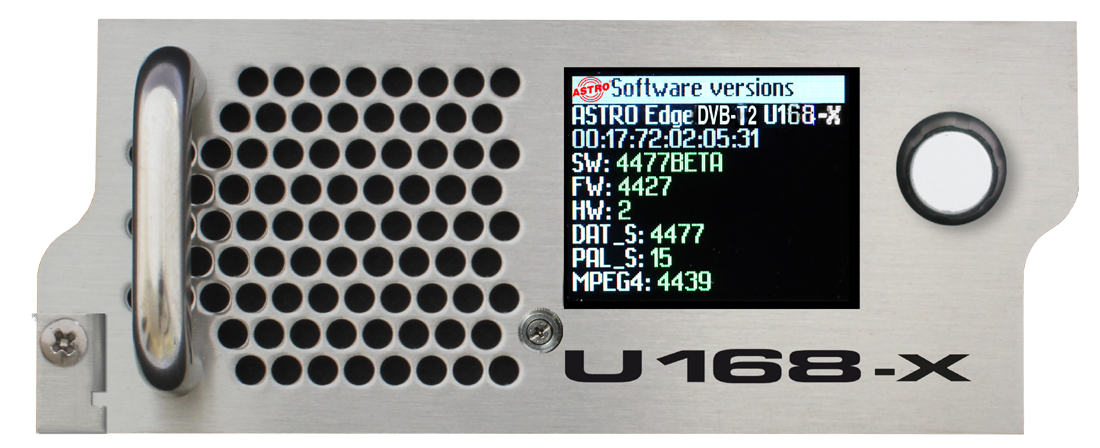

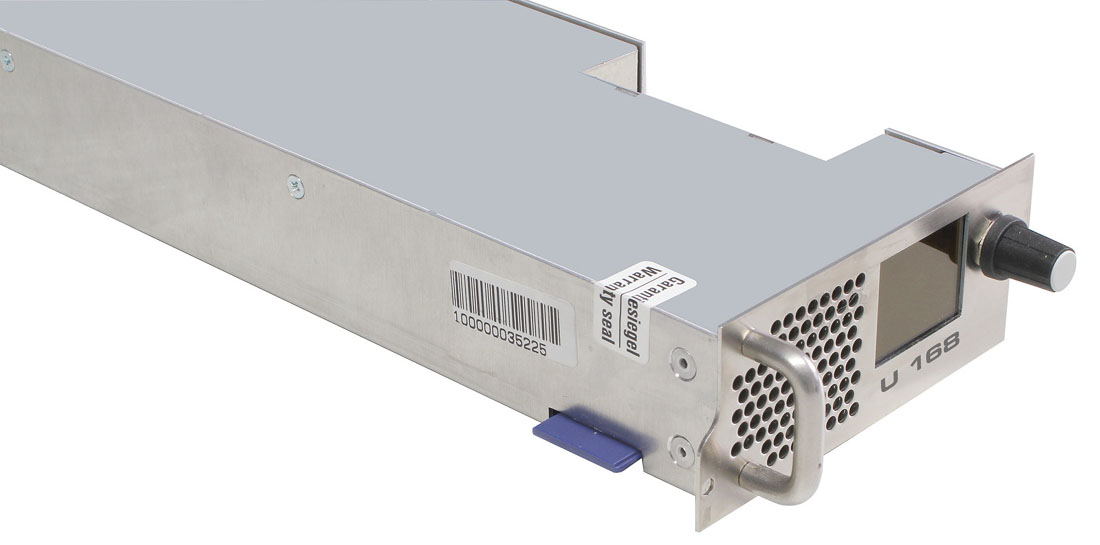

DVB-C, DVB-T or DVB-T2 to IP streamer
DVB-C, DVB-T or DVB-T2 to IP streamer - Image 2
DVB-C, DVB-T or DVB-T2 to IP streamer - Image 3

DVB-C, DVB-T or DVB-T2 to IP streamer

8 DVB-CT2 signals into IP

U 168-X

Specification

Module type

DVB-C/-T/-T2 in IP streamer
Order number

00380172

EAN-Code

4026187194505

On request
Product Details
  • plug-in module for U 100 base unit
  • 2 physical signal input jacks for processing of 8 DVB-CT2 signals into IP multicast groups; 8 MPTS, 504 SPTS (activation of SPTS with license)
  • 2 x 4 in 4 multiplexer to configure individual IP data streams (activation of multiplexing with license)
  • additional features can be activated with license (SSL, RADIUS and BISS descrambling)
  • up to 24 streams per rack unit
  • monitored fan
Download Details

Product is combinable with

BISS descrambling for streamer modules of the U 100 series (except U 149-X)

U Streamer BISS License
License for unlocking the BISS function of U 100 streamer modules

SPTS license key for U 168-X

U 168 SPL SPTS Lizenz
U 168-X license to enable the SPTS streaming function

Base unit

U 100-230
230 V version, for mounting up to 3 plugin modules of the U 100 series

Upgrade license multiplex functionality

U 168 X - MUX License
License key for upgrading the U 168-X streamer

Management controller

U 100-C
for U 1xx devices
