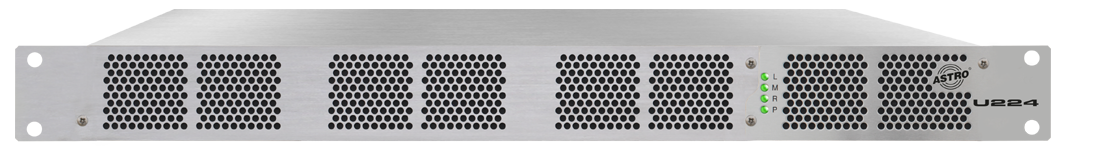

Signal converter IP to PAL
Signal converter IP to PAL - Image 2
Signal converter IP to PAL - Image 3
Signal converter IP to PAL - Image 4

Signal converter IP to PAL

Login to see prices

up to 24 IP Gigabit Ethernet multicast groups to 3 x 2 x 4 Standard PAL programmes

U 224-230

Specification

Module type

IP in PAL converter
Order number

00380227

EAN-Code

4026187194635

Product Details
  • Fully integrated device for the conversion of IP signals to PAL / NTSC TV programmes
  • for the conversion of up to 24 IP Gigabit Ethernet multicast groups to 3 x 2 x 4 Standard PAL programmes
  • four PAL channels each can be played out in the 96 MHz range
  • WSS, Teletext, VPS, ticker insertion, RTP, FEC, IGMPv3, MPEG4 H.264/AVC Level 4.1, HD in SD Downscaling
  • outstanding parameters thanks to Direct Digital Technology
  • power supplies have to be ordered SEPARATELY (one for Operation, two for redundant voltage supply
  • user-friendly configuration via Web Interface
  • fans integrated to the management
Download Details

Product is combinable with

License for transport stream analyzer

TS Analyzer License
License key for activating the transport stream analyzer in the U 261 / U 262
