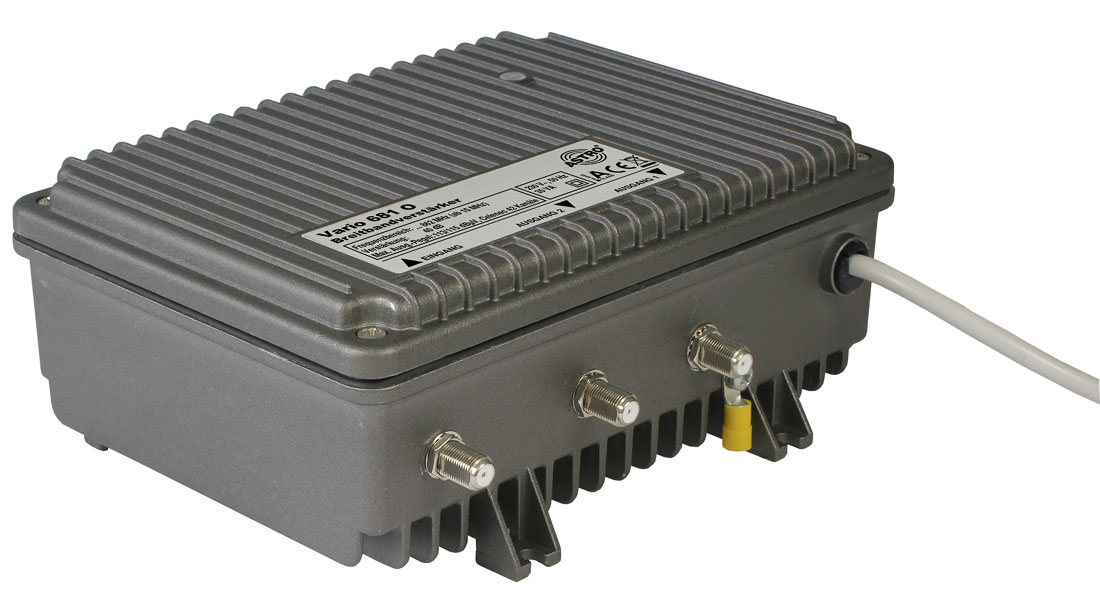

Modular broadband amplifier
With optional 65 MHz return path

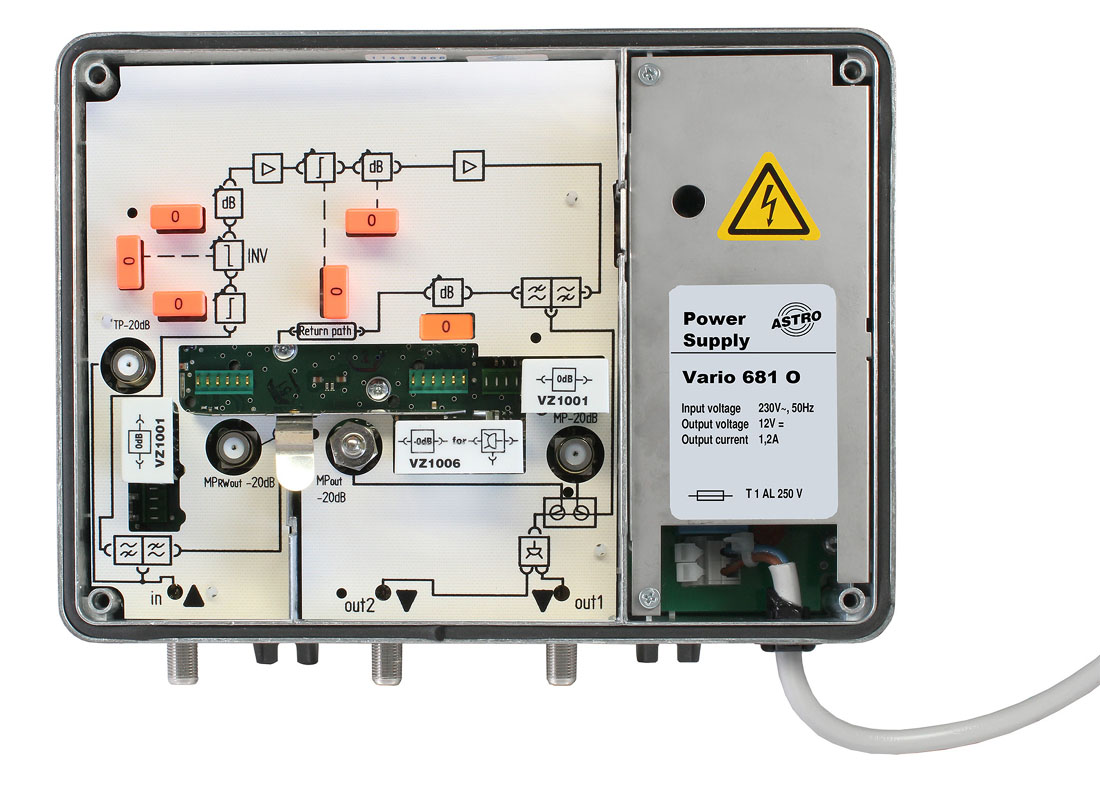

VARIO 681 O
Specification
| Device type | Modular |
|---|---|
| Power supply | Local |
| Frequency range | up to 1006 MHz |
| Forward path gain | >39 dB |
| Order number | 00217681 |
|---|---|
| EAN-Code | 4026187003029 |
Product Details
- With optional 65 MHz return path
- 15 MHz high pass in return path
- Pre-amplification gain 40 dB
- Pre-amplification output level 113 dBµV
- Return path amplification depending on return path module used
- Input attenuation 0 - 20 dB
- Input equaliser 0 - 20 dB
- Inverse input equaliser 0 - 10 dB
- Interstage attenuation 0 - 7 dB
- Interstage equaliser 0 -10 dB
- 20 dB measuring points at input and output
- 2 outputs configurable via plug-in modules (taps or distributors)
Download Details
-
Anleitung VARIO 681 O und VARIO 682 O DE pdf · 2mb
-

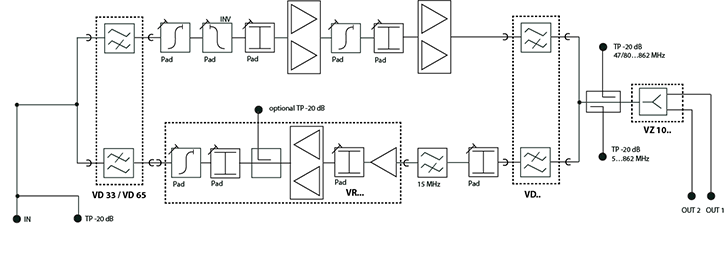

Blockschaltbild Vario 681_Vario 683 pdf · 2mb
